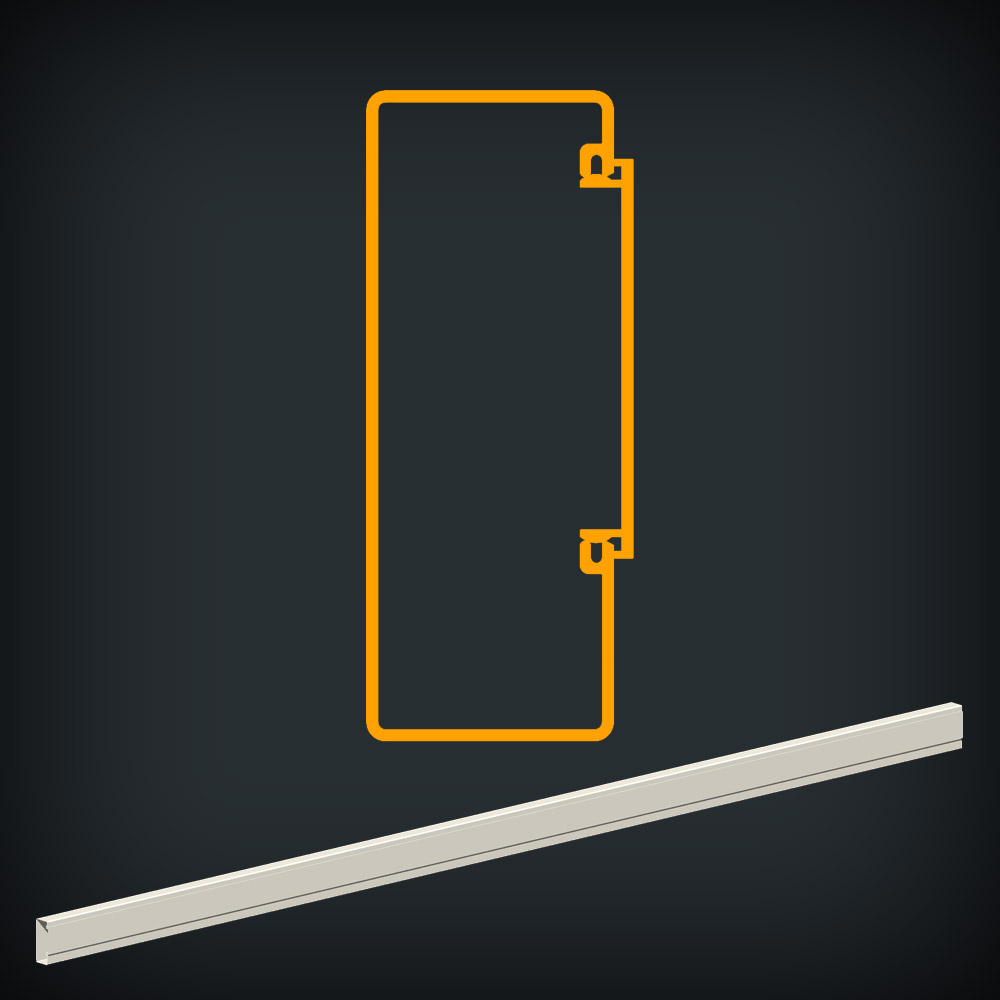

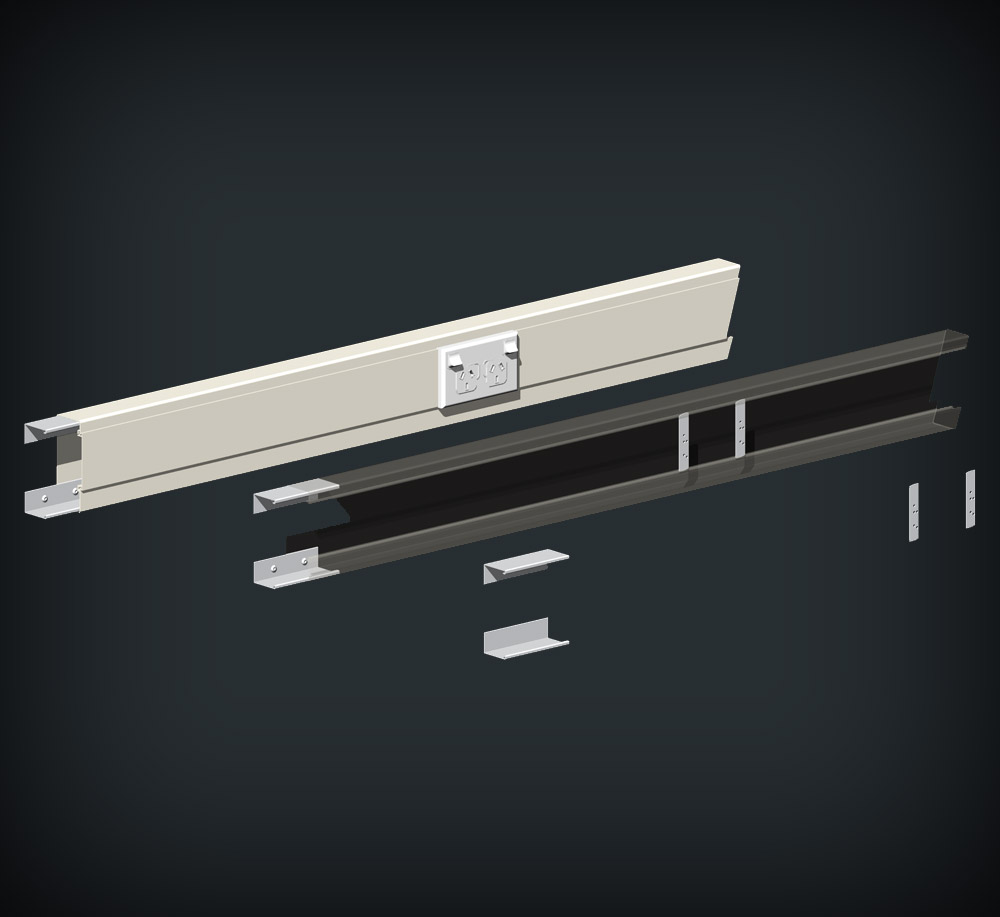

Cat 5 64/115/1
114 x 43mm - uses standard outlet fittings
Profile lengths include covers
64.1130 - 3.0m
64.1160 - 6.0m

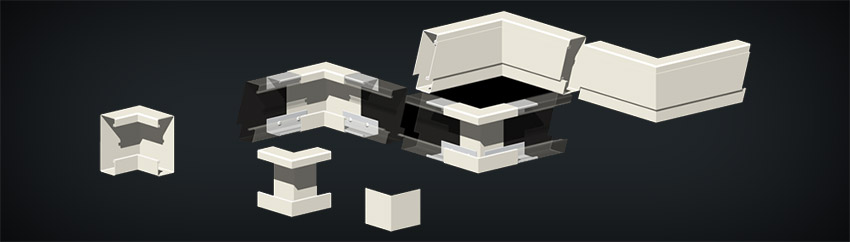

Column Surrounds: site dimensions required,
Corner cover pieces included
Two Side CS - 64.1920
Three Side CS - 64.1930
Four Side CS - 64.1940, fabricated in two parts; includes joiners and provision for dropper feeds if required.

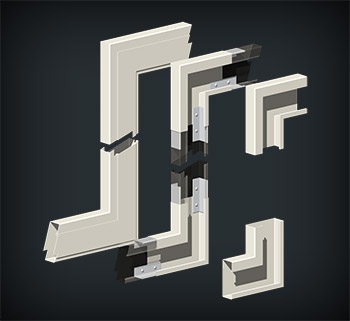

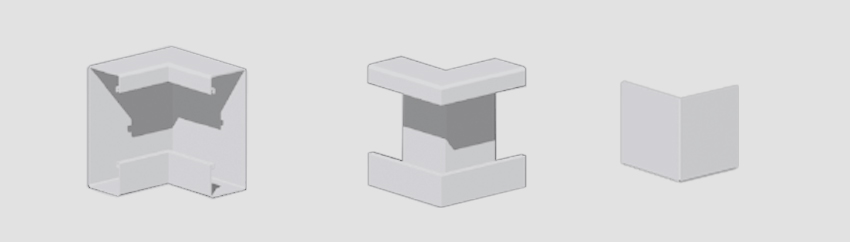

Internal Corners 64.1300
External Corners w cnr cvr 64.1310
Replacement corner cover 70.0380

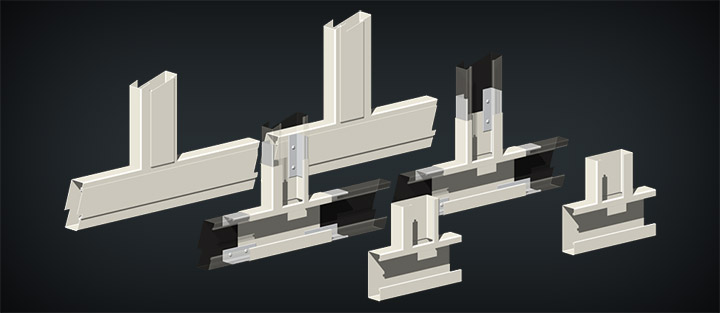

Flat T intersection - Cover Plate Right 64.1510
Flat T intersection - Cover Plate Left 64.1500
Flat Bend - Cover Int w cnr cvr 64.1400
Flat Bend - Cover Ext w cnr cvr 64.1410
Replacement corner cover 70.0470

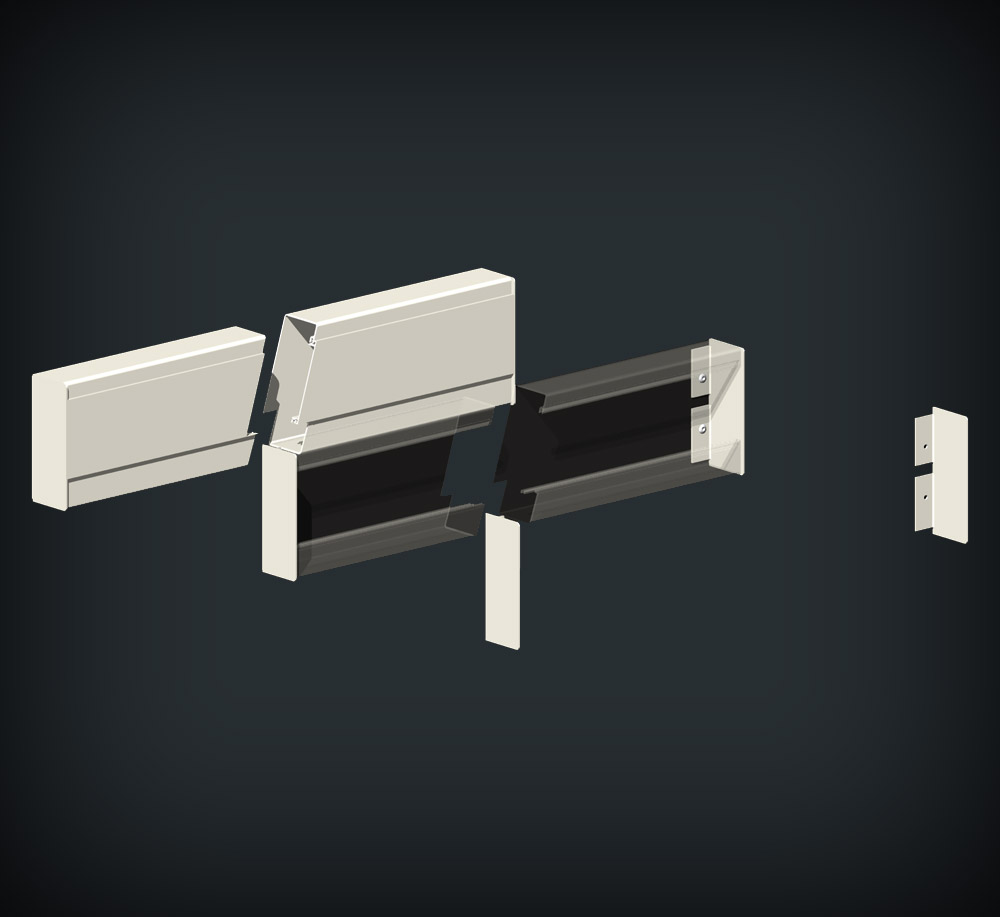

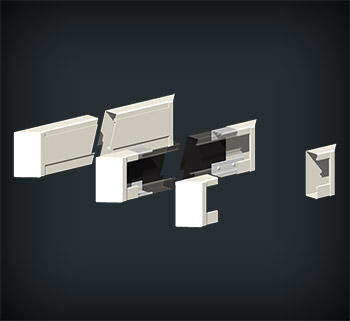

90 Degree End Cap Right and Left Ending. Rivet or screw fix to profiles. 64.0620
45 Degree End Caps Right Ending - 64.1610
45 Degree End Caps Left Ending - 64.1600
Trunking accepts standard power and data fittings

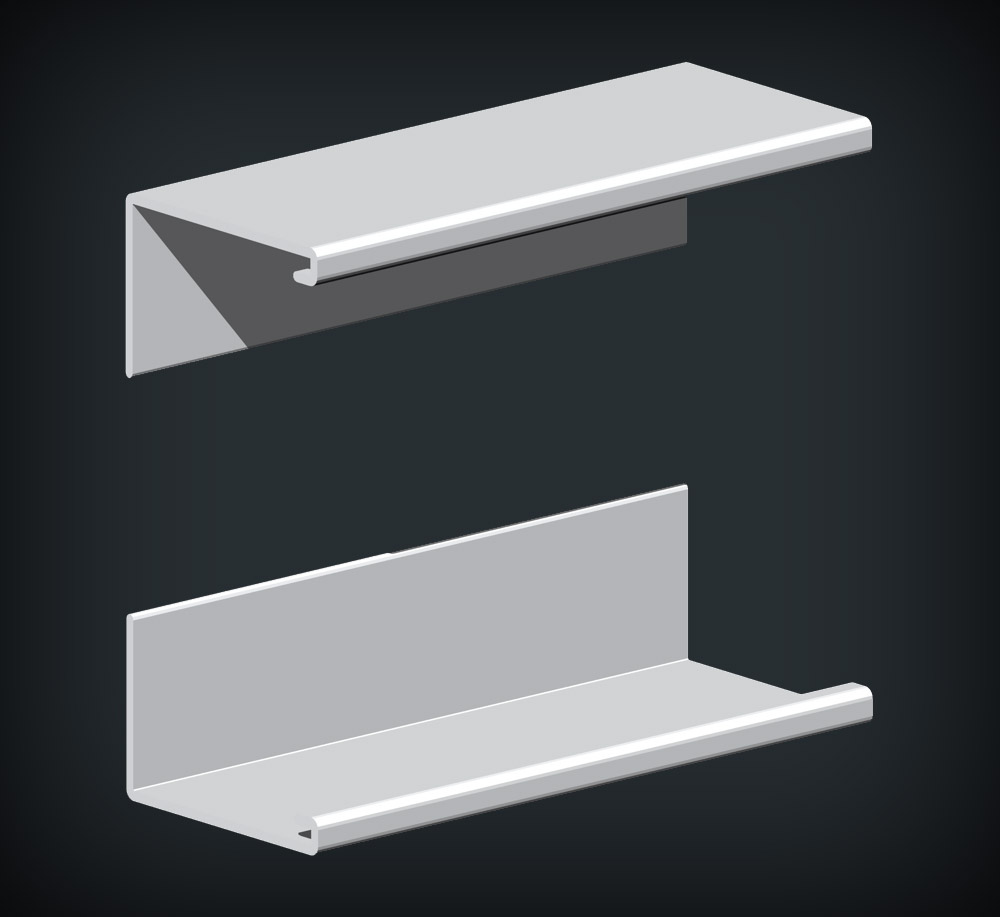

Power and Data Fixing Plates 70.0040 (pair, one pair per outlet)

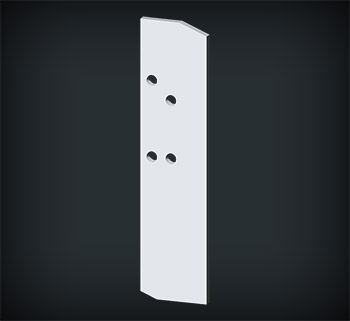

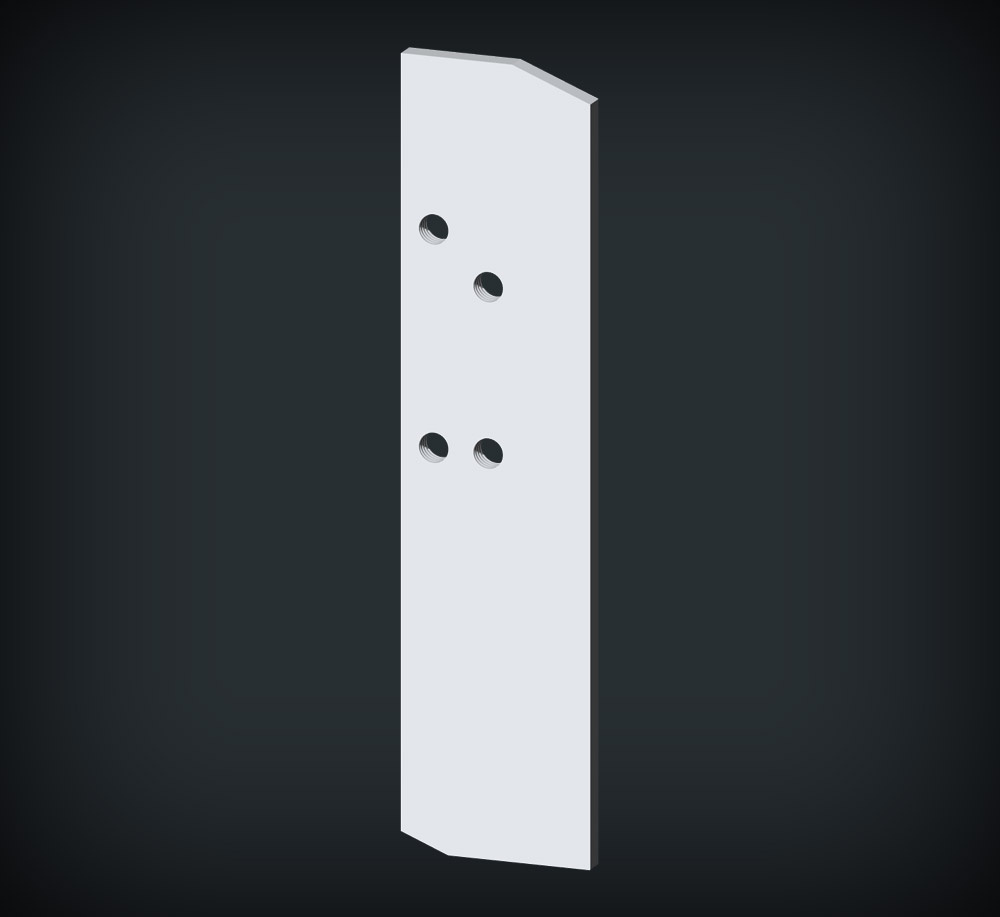

Joining Pieces - rivet or screw fix
Supplied in pairs - 10.0100
