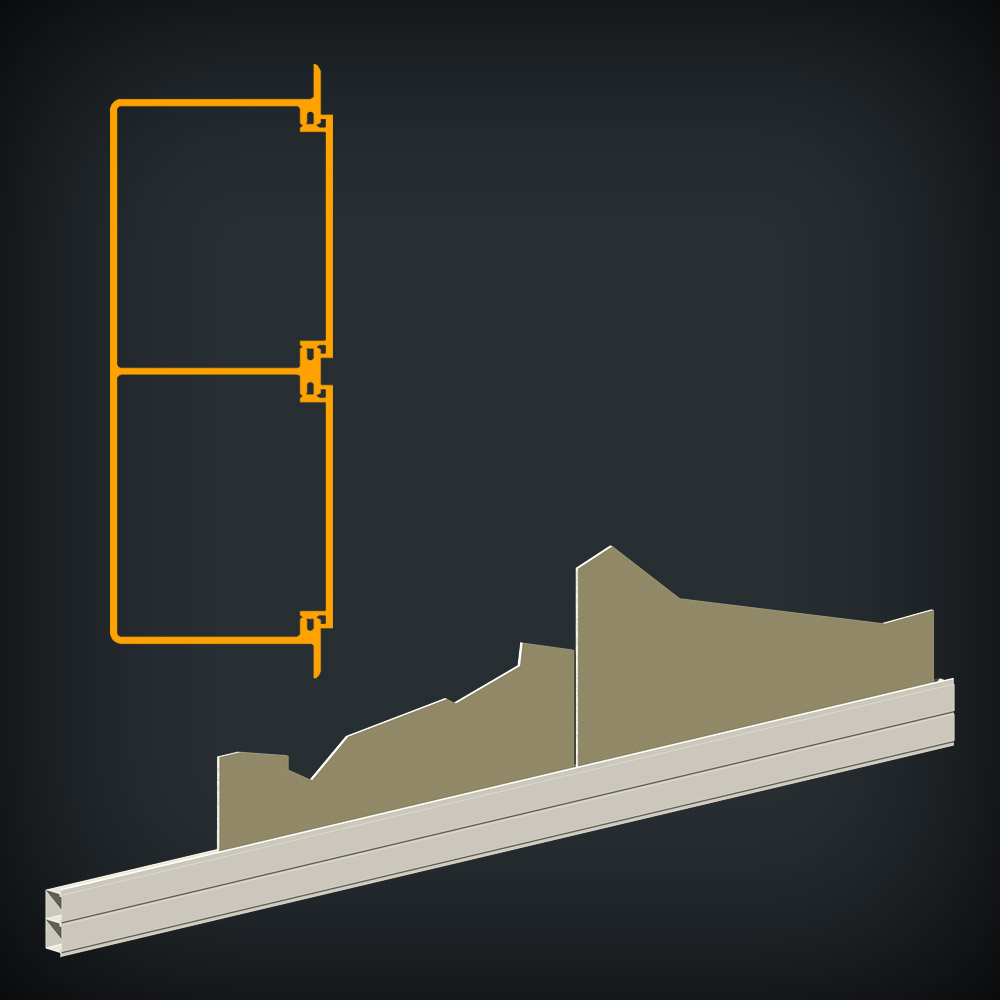

Cat 6 156/2 Skirting for Recessed installation
Standard size power and data outlets
156 x 60 mm
3.0m - 156.2136
6.0m - 156.2166
Supplied complete with lids

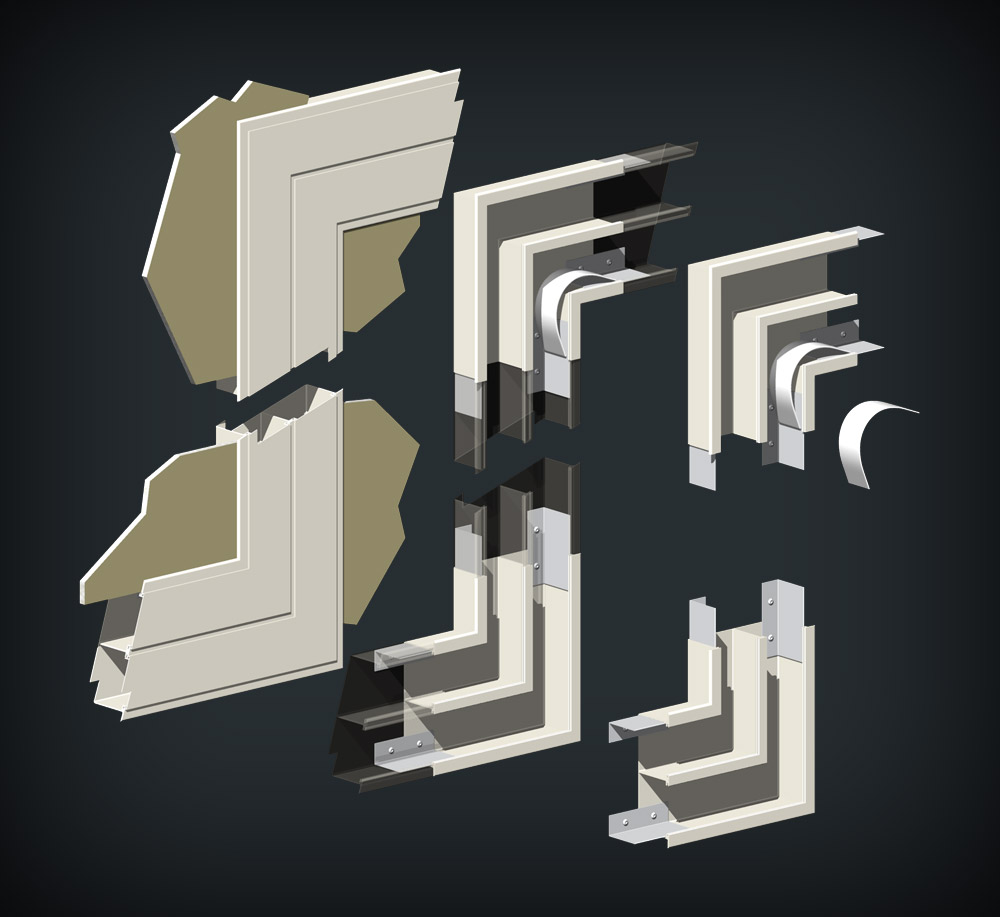

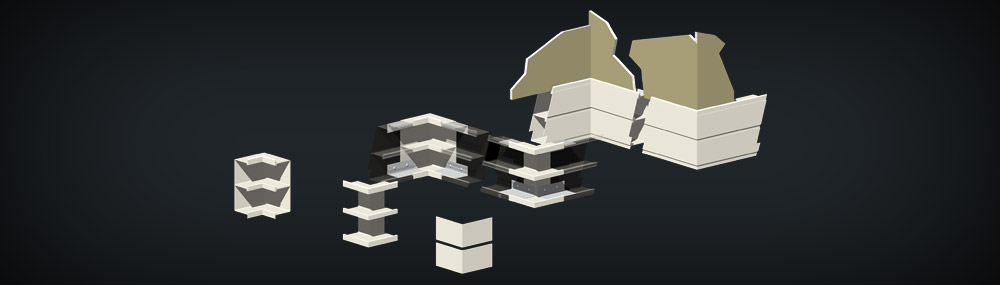

Internal corners - 156.2306
External corners cw Cvrs - 156.2316
Corner covers (Replacement Set) - 70.0380

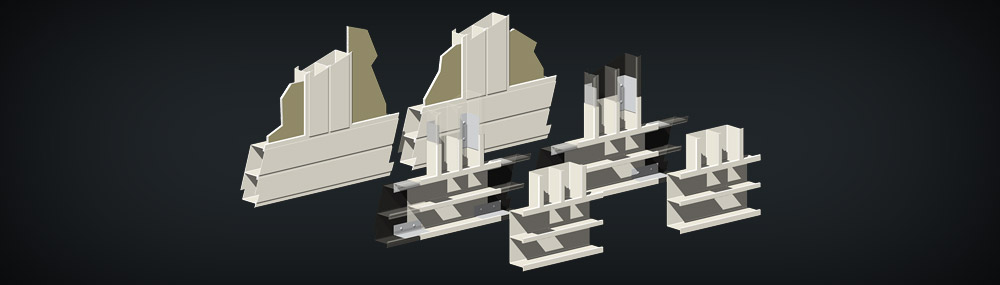

Flat Tee intersection data left - 156.2506
Flat Tee intersection data right - 156.2516
Flat Bend Data Int w cnr cvrs - 156.2406
Flat Bend Data Ext w cnr cvrs - 156.2416
Corner covers (repl set) - 70.0470

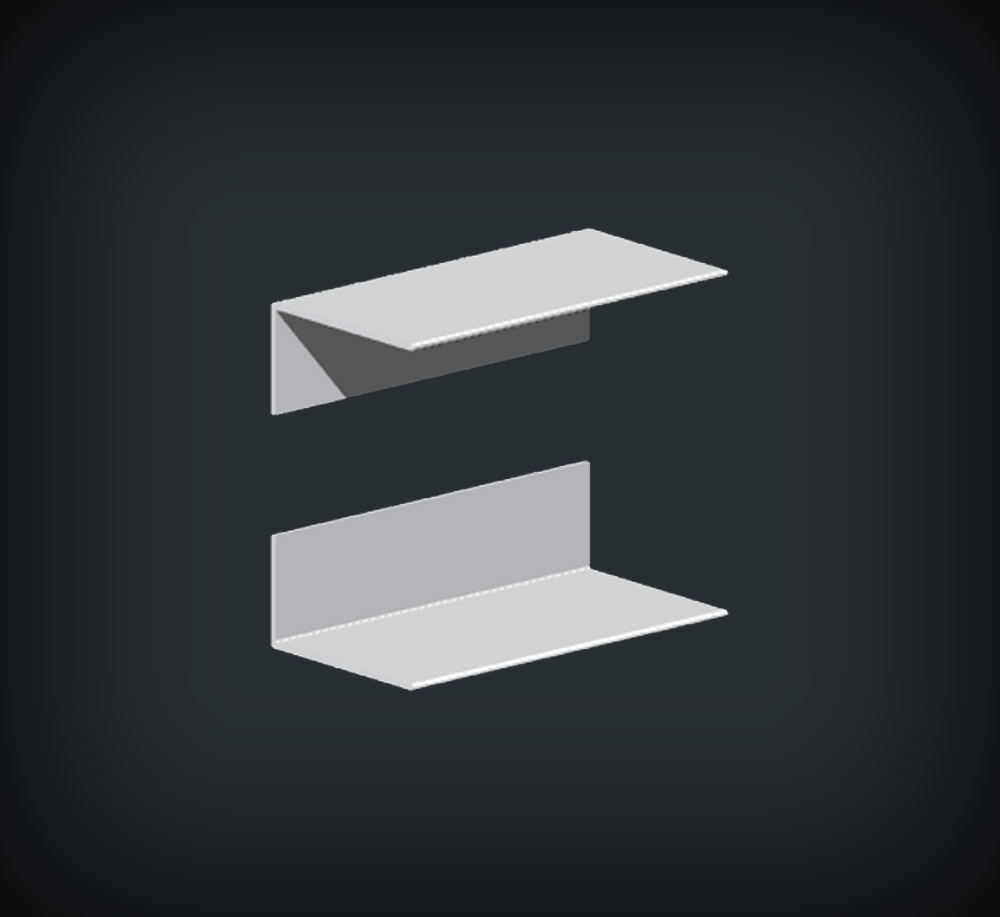

Power and data fixing plates
Upper power channel - 70.0040 (pair)
Lower data channel - 70.0040 (pair)

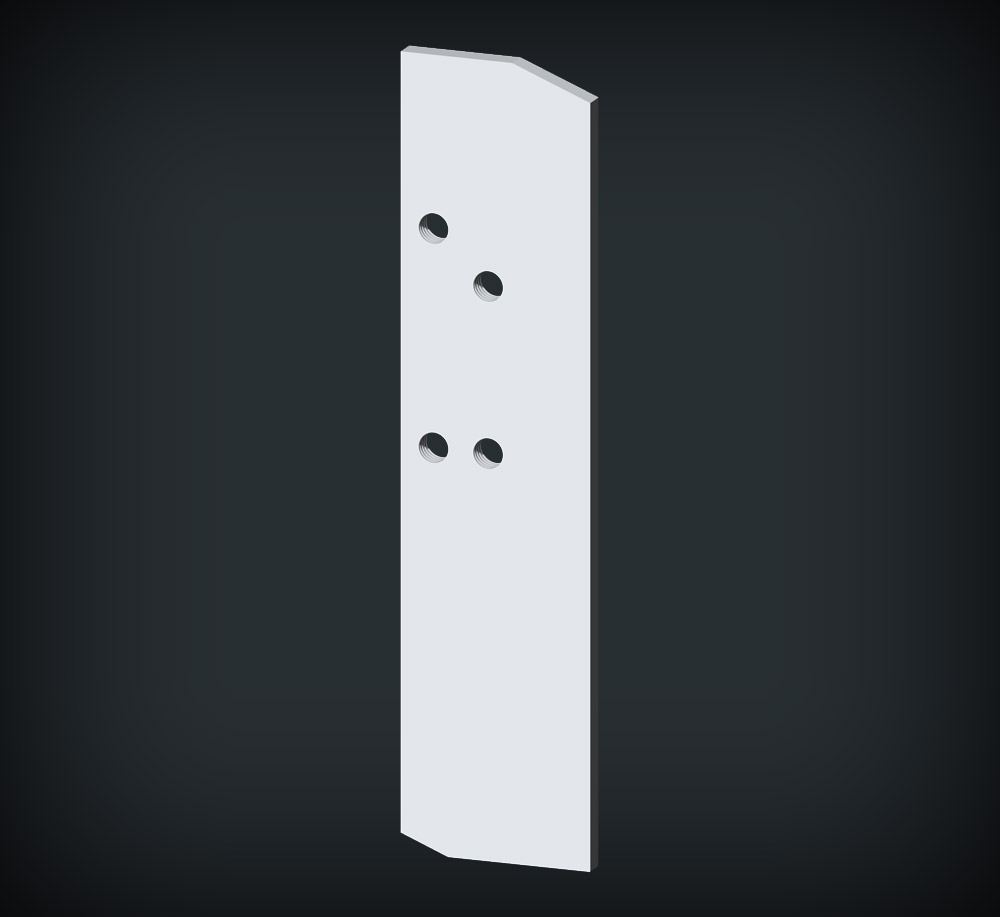

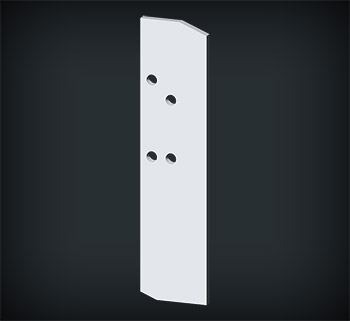

Joining pieces - rivet or screw fix
Supplied in pairs - 156.0106
(unique to the Cat 6/156/2 profile)

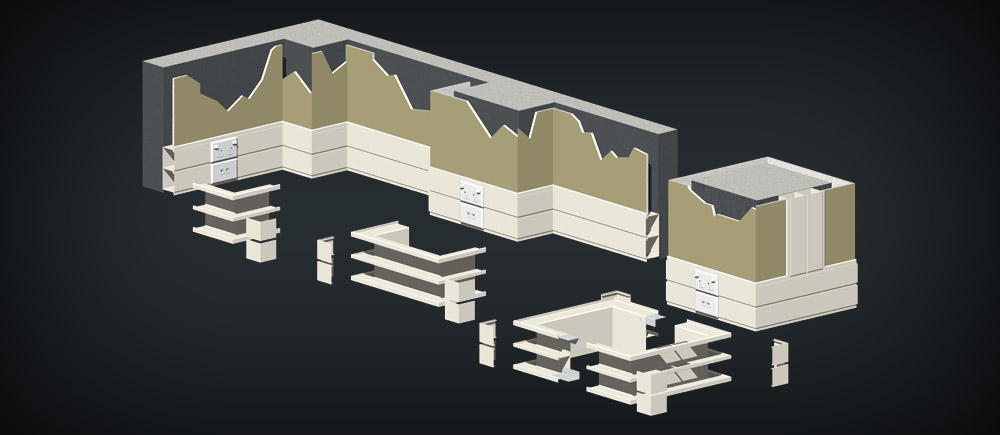

Column (Pillar) Surrounds 2, 3 and 4 sided:
Two - 156.2926
Three - 156.2936
Four - 156.2946
Site measure recommended
