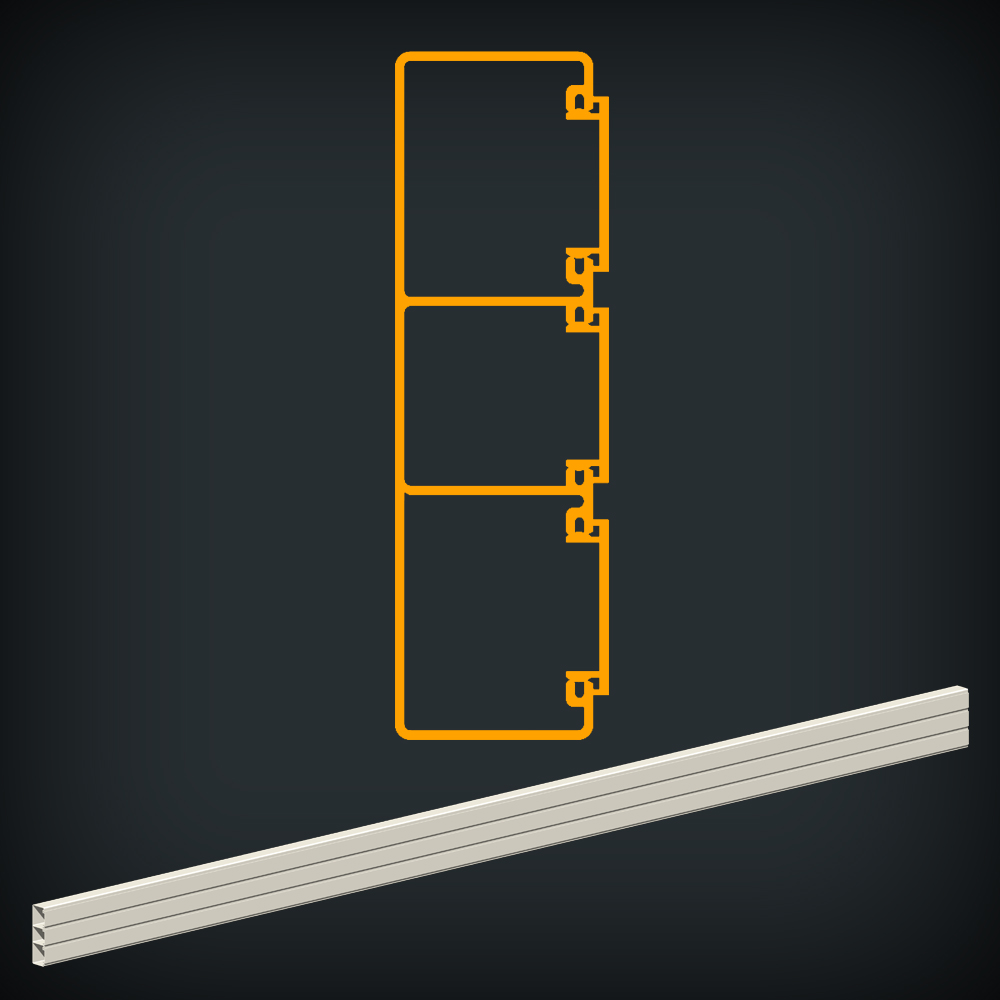

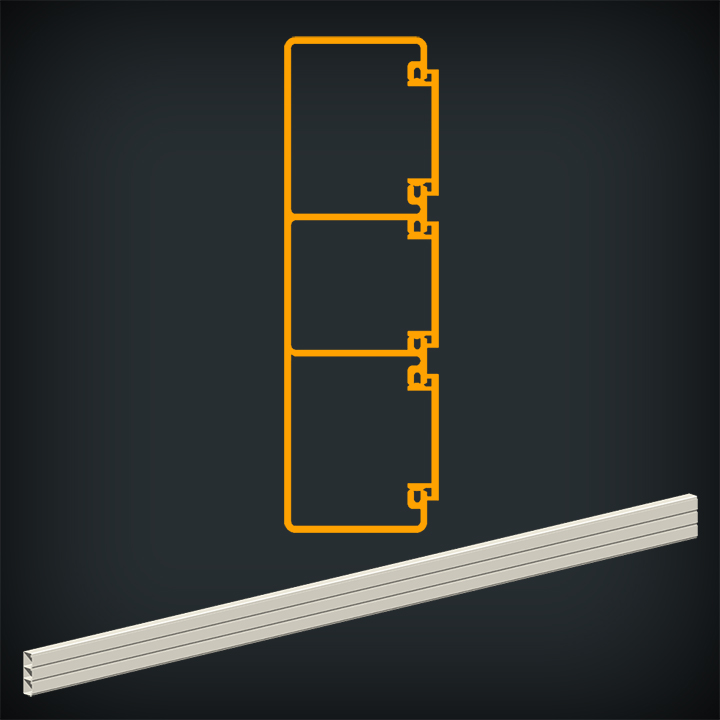

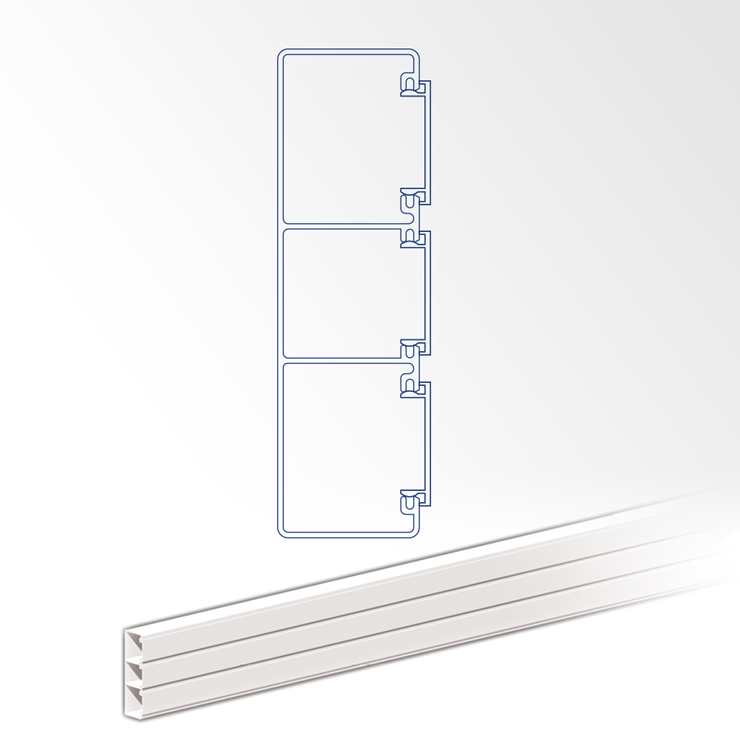

Profile lengths include covers. Central channel is smaller.

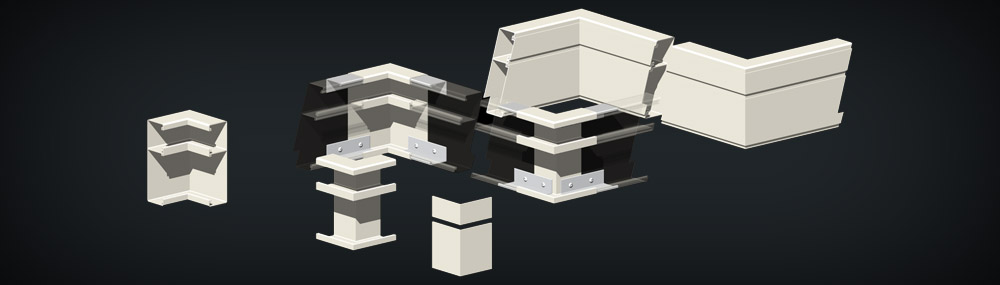

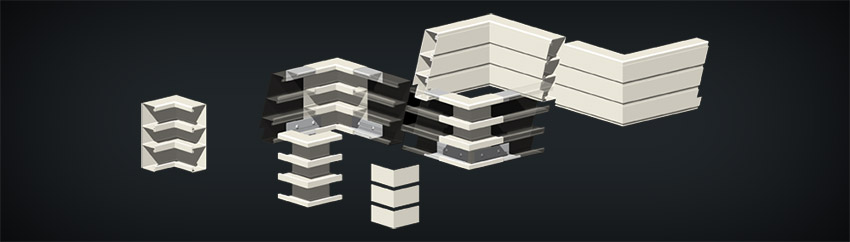

Column Surrounds:
Site dimensions required
Corner cover pieces included
Two Sides - 150.3920
Three Sides - 150.3930
Four Sides - 150.3940
Fabricated in two parts with
provision for dropper feeds if req
Internal corners 150.3300 - 100x100x150
External corners 150.3310
External corner - covers only 150.3320 (set)

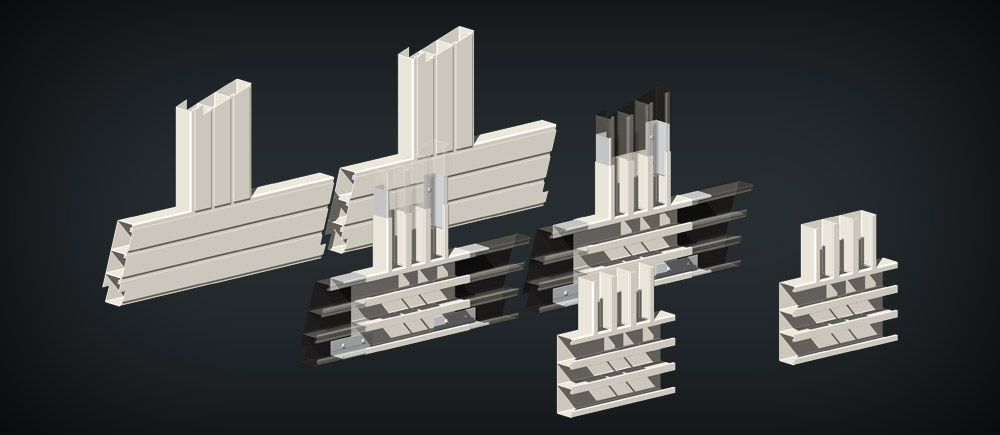

Commonly requested factory fabricated components shown, custom fabricated units also available.

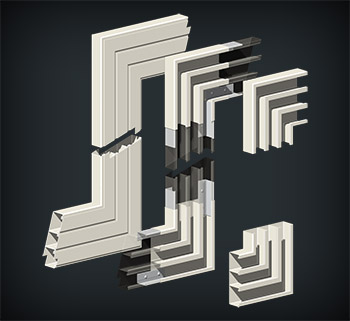

Flat T intersection 150.3500 - 250x250
Flat bend 150.3400 - 200x200

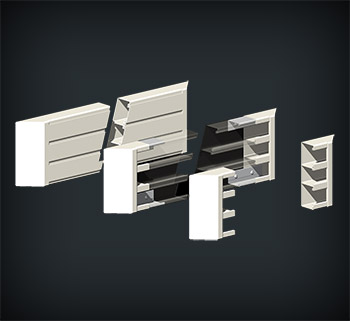

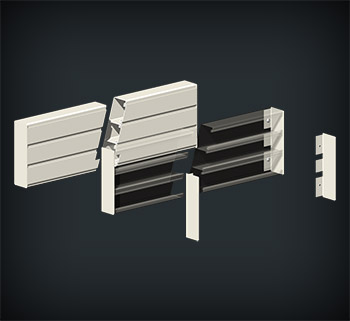

90 degree end cap - rivet or screw fix to profiles. 150.3620
45 degree end cap right ending - 150.3610
45 degree end cap left ending - 150.3600

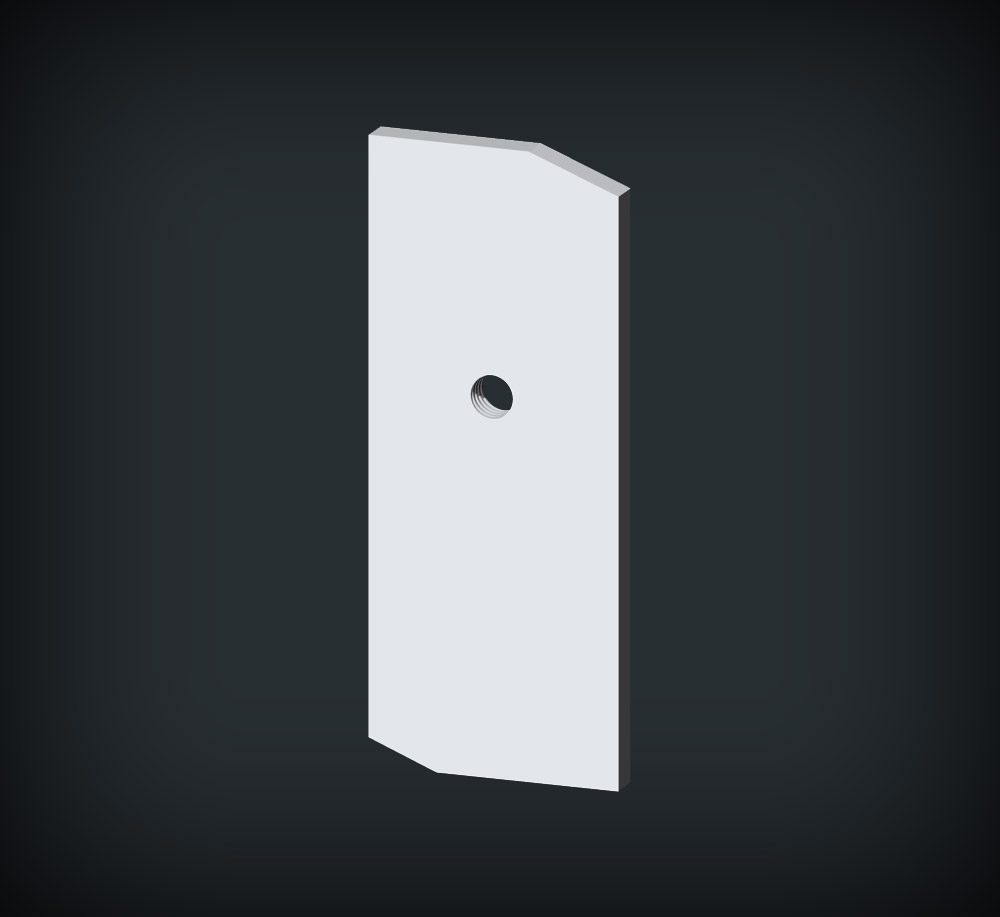

Joining pieces - rivet or screw fix supplied in pairs - 10.0000

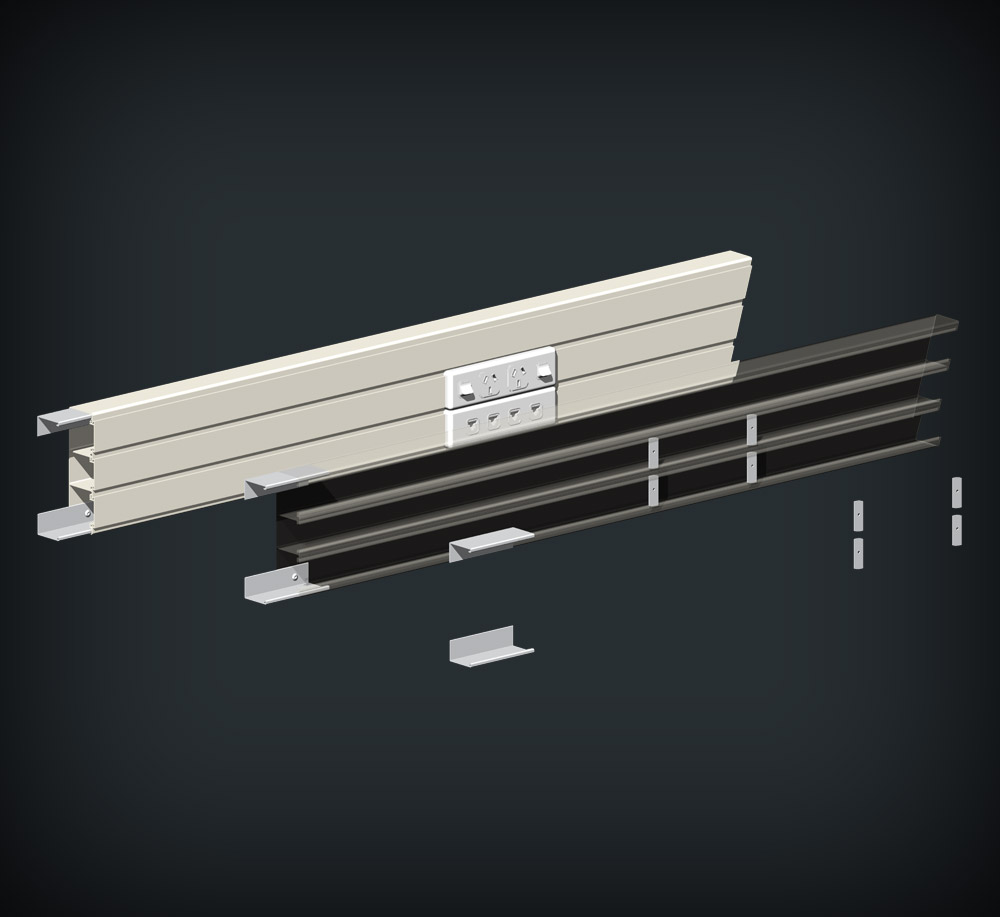

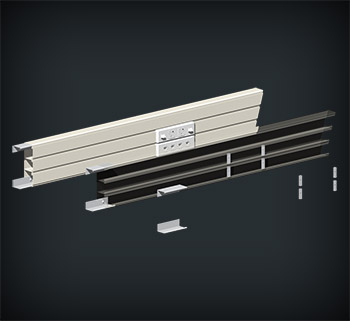

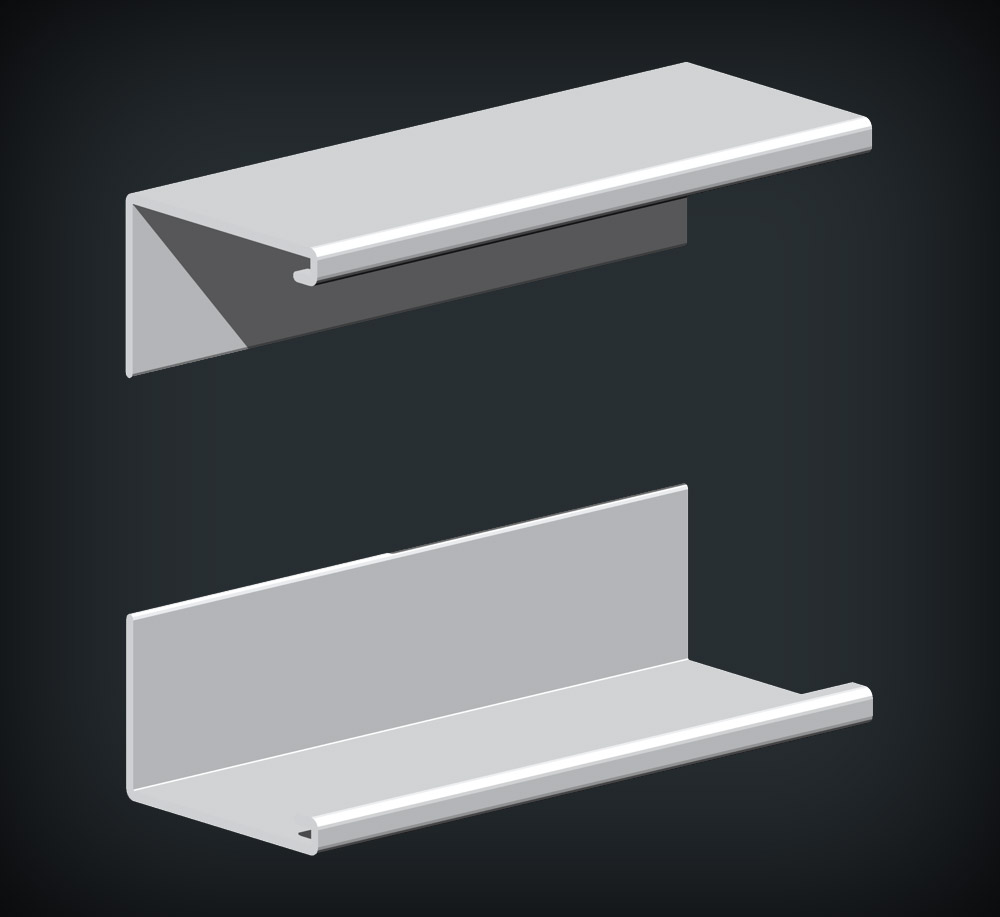

Power and data fixing plates
All channels - 38.0040 (pair)
Joining pieces - rivet or screw fix supplied in pairs - 10.0000
