CAT 6 90/1

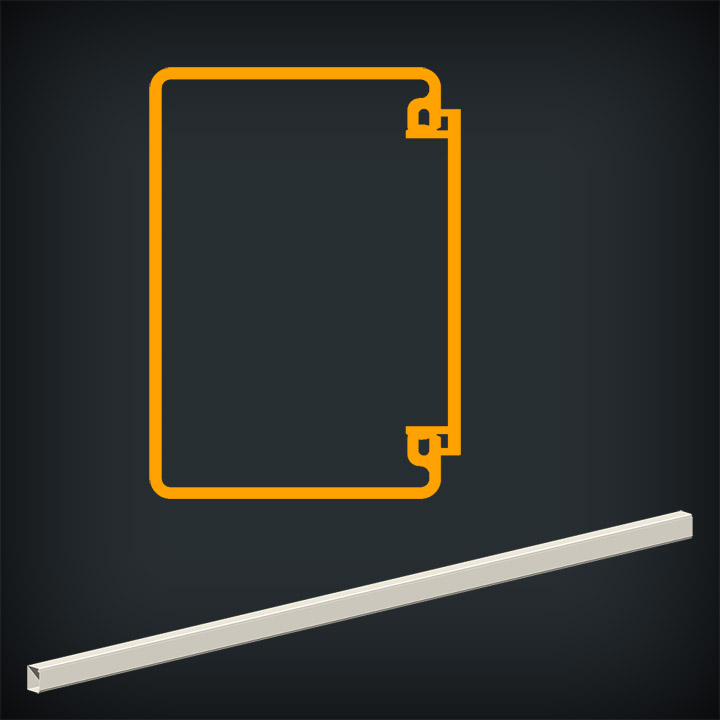

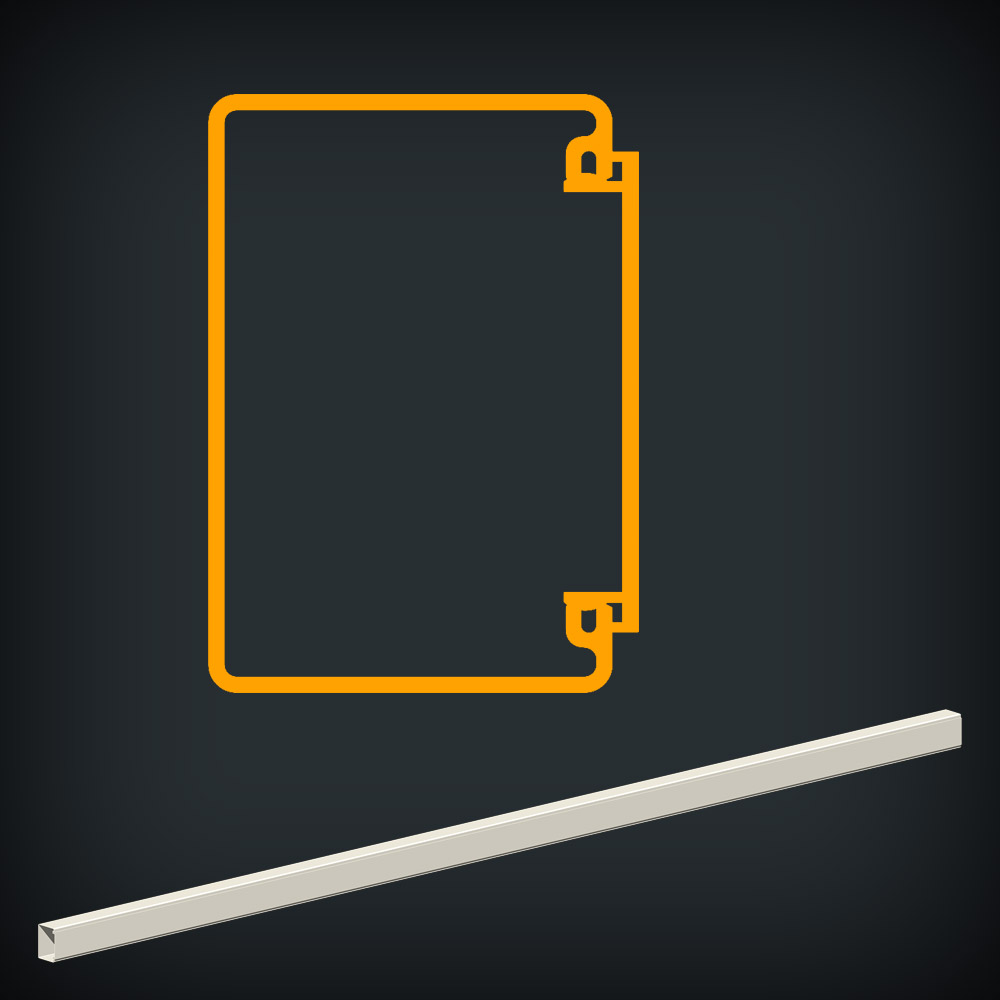

Skirting Profile

Cat 6 90/1
89 x 60mm
Profile lengths include covers
3.1m - 90.1136
6.2m - 90.1166

Column Surrounds:
Site dimensions required,
Corner cover pieces included
Two Sides - 90.1926
Three Sides - 90.1936
Four Sides - 90.1946, fabricated in two parts; includes joiners and provision for dropper feeds.

Download Datasheet

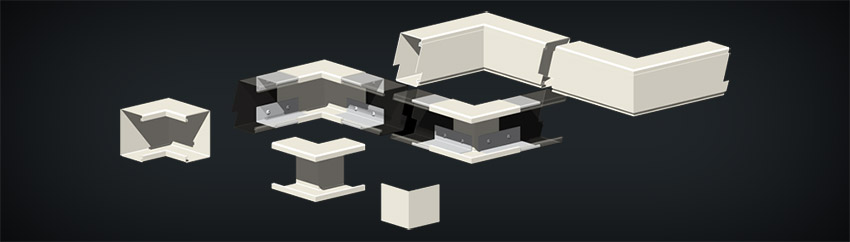

Accessories
Commonly requested factory fabricated components shown, custom fabricated units also available.

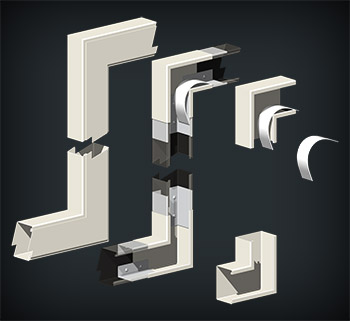

Internal corners 90.1306

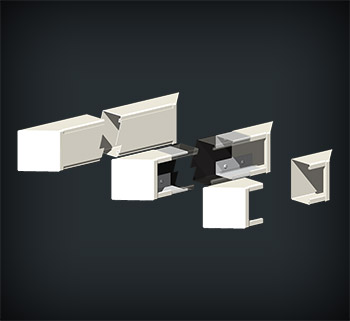

External corners w cnr cvr 90.1316
Replacement corner cover 70.0380

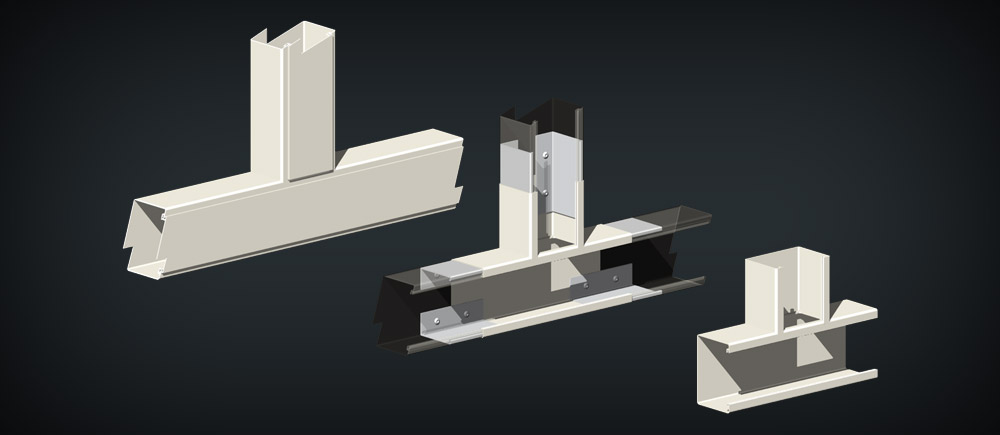

Flat T intersection 90.1506

Flat bend either hand w corner cover 90.1406
Replacement corner cover 70.0470

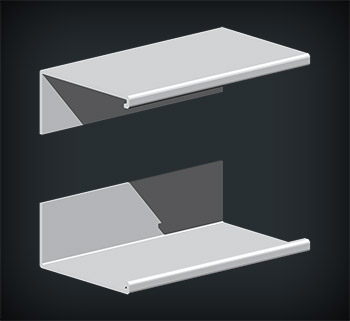

90 degree end cap right and left ending. Rivet and screw fix to profiles. 90.1626



45 degree end caps right ending - 90.1606
45 degree end caps left ending - 90.1606

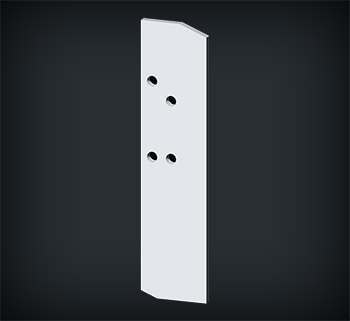

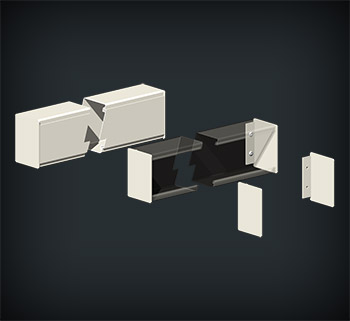

Joining pieces specific to this profile - rivet or screw fix.  Supplied as a pair - 90.1106

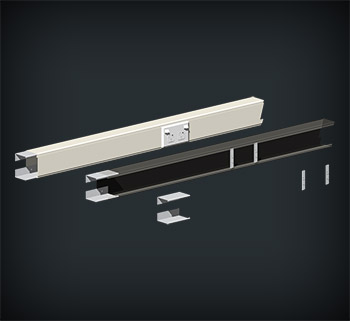

Power and data fixing plates 70.0040 (pair)

Joining pieces specific to this profile - rivet or screw fix.  Supplied in pairs - 90.1106
