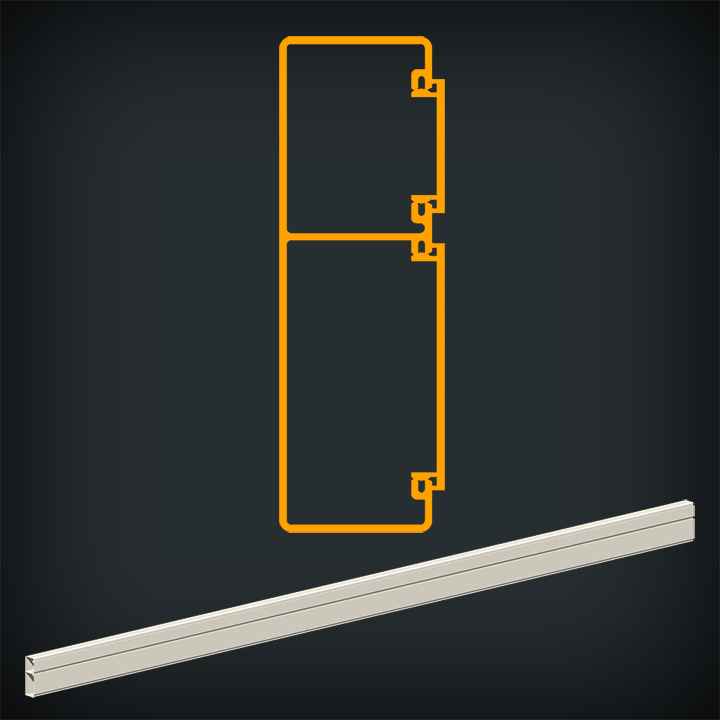

Cat 5 140/2

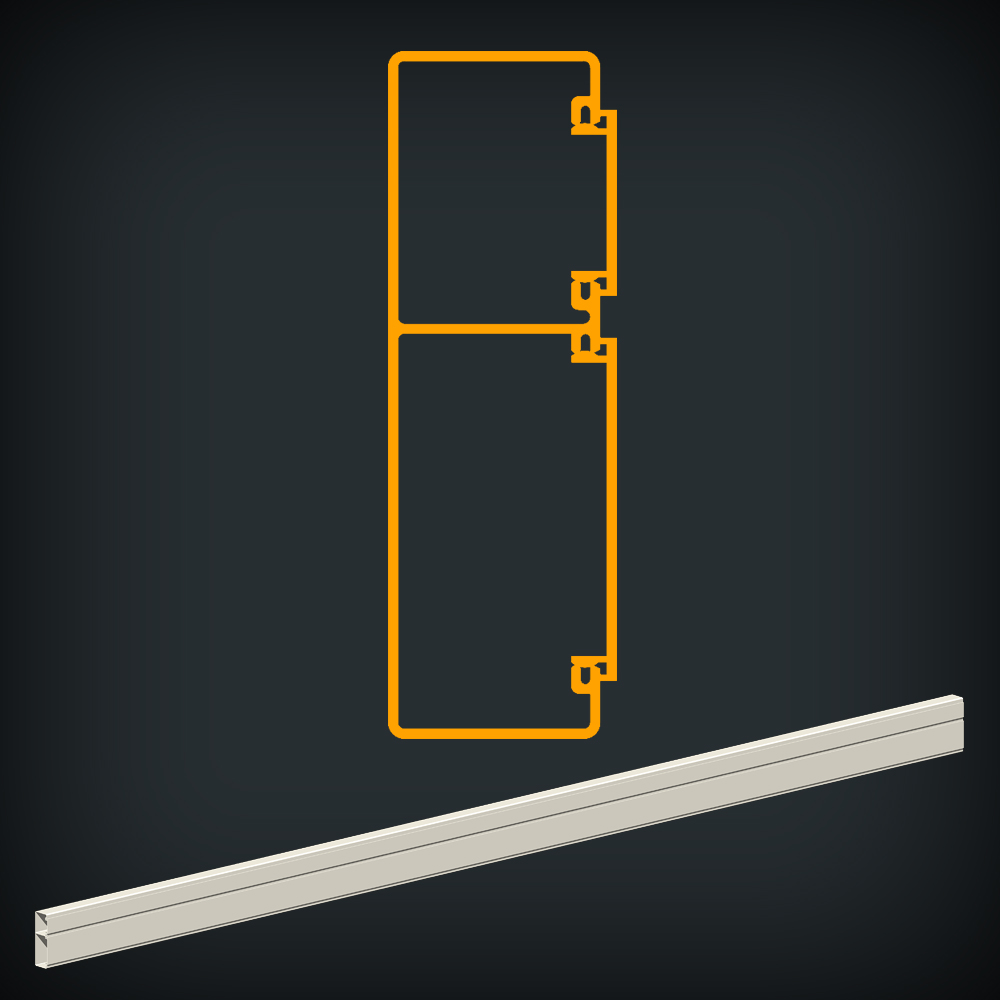

140x43mm
Profile lengths include covers.

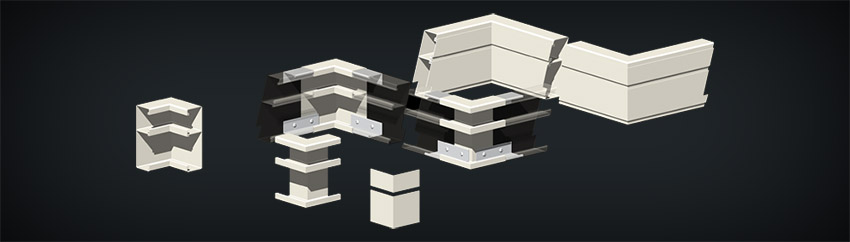

Column Surrounds: site dimensions required; corner cover pieces included
Two Sides - 140.2920
Three Sides - 140.2930
Four Sides - 140.2940, fabricated in two parts with provision for dropper feeds if required.
Internal Corner - 140.2300
External Corner - 140.2310. Corner set included - 38.0380 / 70.0380

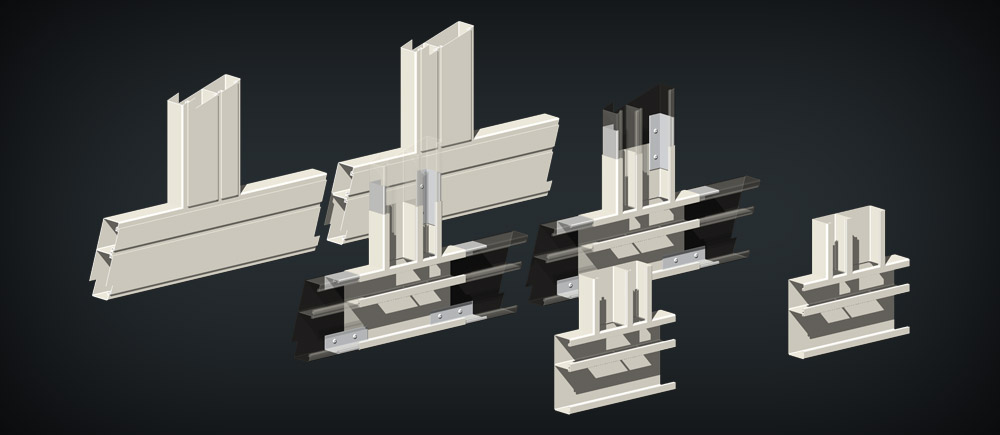

Flat T Intersection Data - Left - 140.2500
Flat T Intersection Data - Right - 140.2510

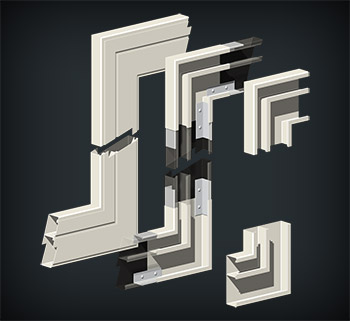

Flat Bend Data - Internal - 140.2400
Flat Bend Data - External -140.2410
Cover sets included - 38.0470 / 70.0470

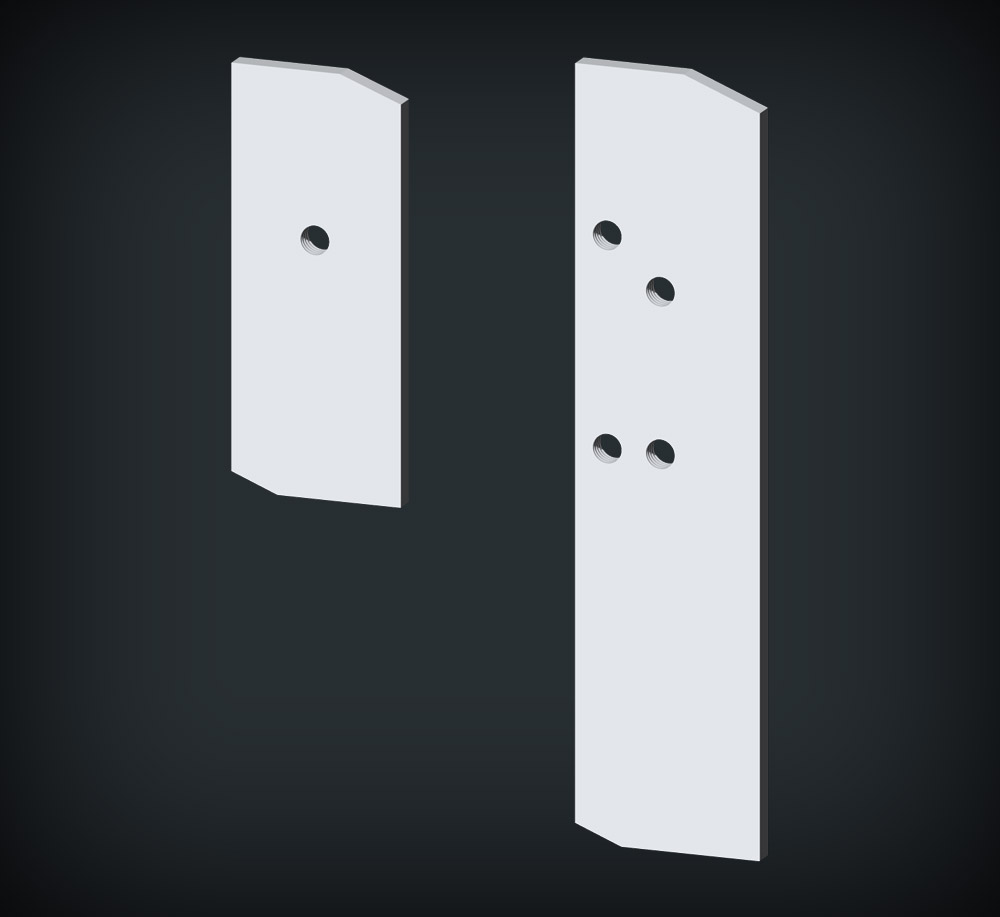

Joining Plates - Pair - 10.0100.
Rivet / Screw fix to profile.

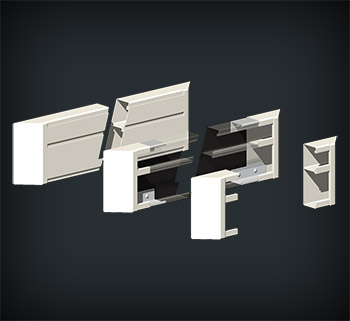

45-degree End Cap - Right - 140.2610
45-degree End Cap- Left - 140.2600

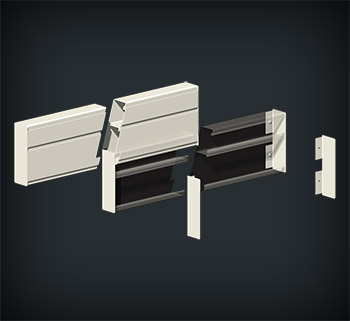

90-degree End Cap - 140.0620. Rivet / Screw fix to profiles

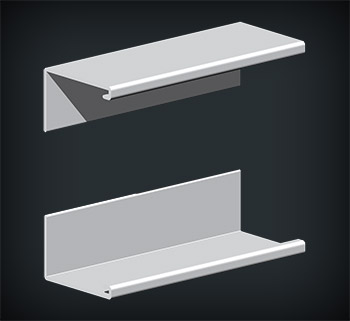

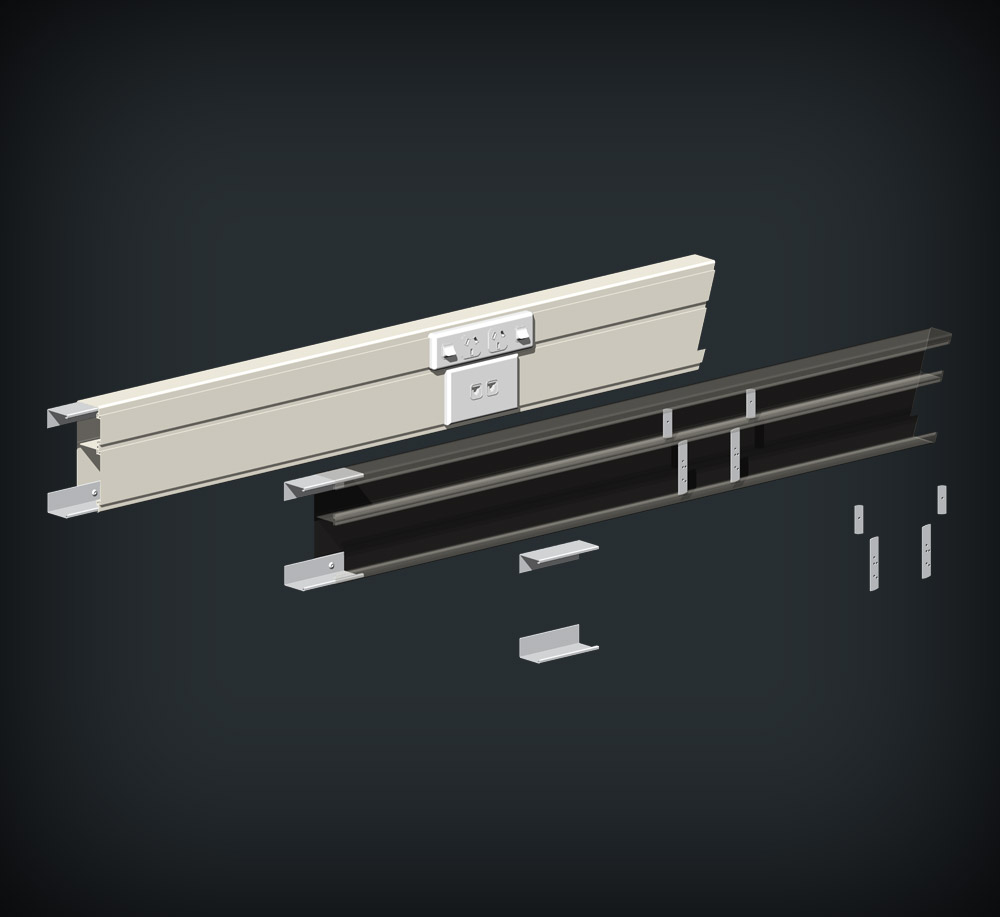

Power & Data Fixing Plates - Pair
Upper power channel - 38.0040
Lower data channel - 70.0040
