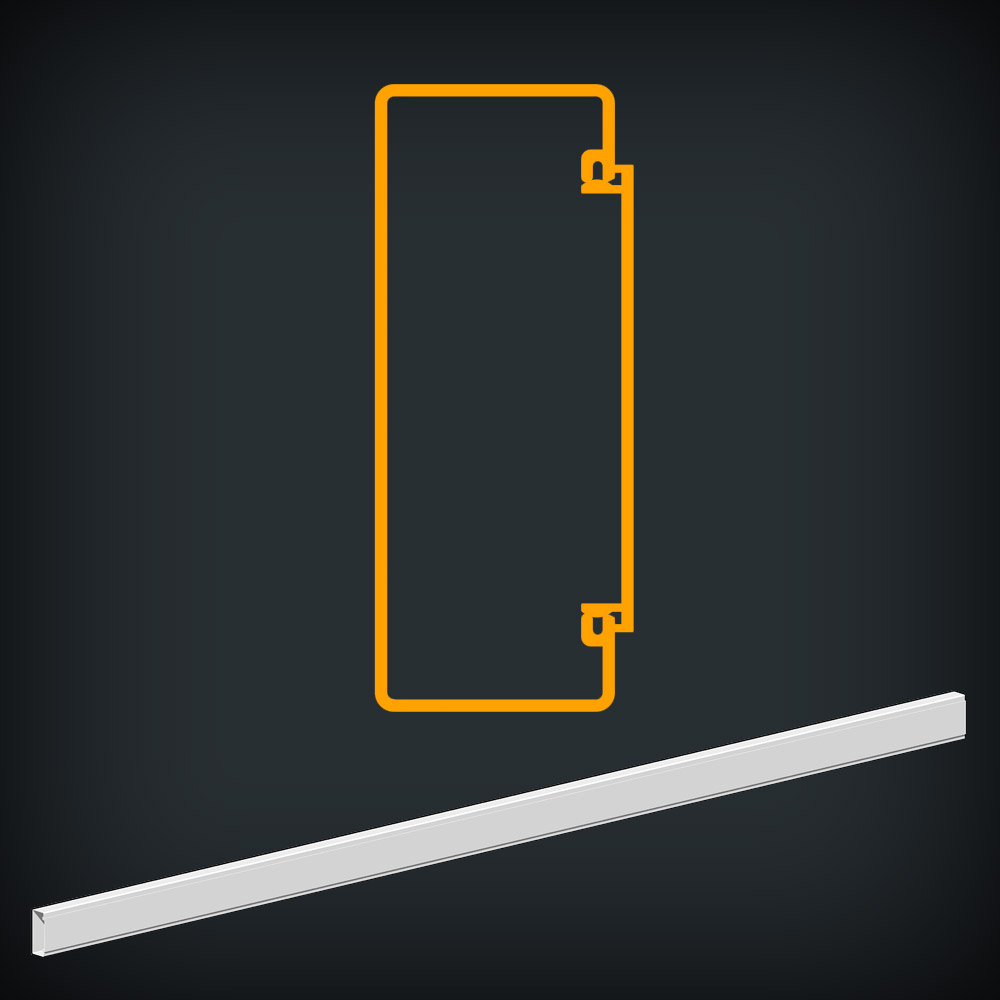

Cat 5 115/1
Profile lengths include covers
3.0m - 115.1130
6.0m - 115.1160
Requires adaptor plates for standard fittings.
Column Surrounds: site dimensions required, Corner cover pieces included
Two Sides - 115.1920
Three Sides - 115.1930
Four Sides - 115.1940, fabricated in two parts; includes joiners and provision for dropper feeds if required.

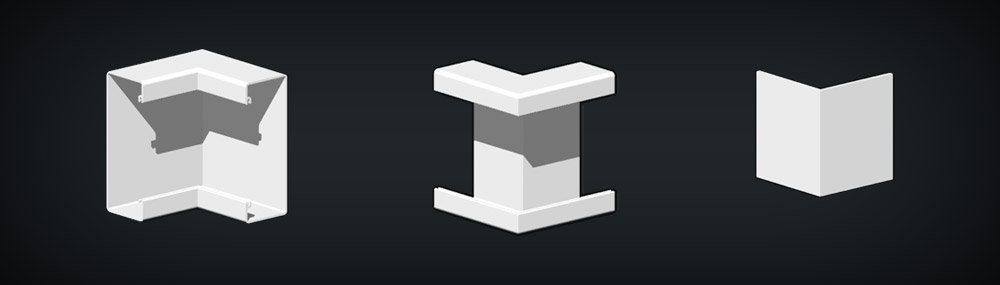

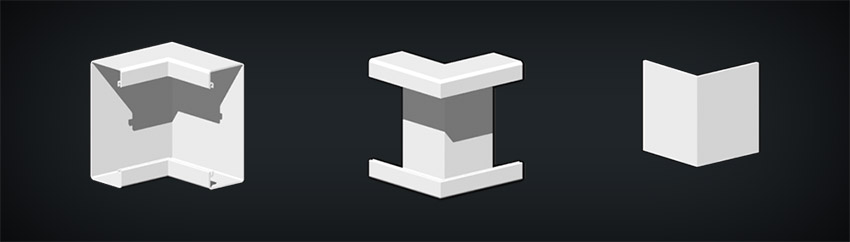

Internal Corners 115.1300 - 100x100x114
External Corners 115.1310
External Cover - Incl with Ext Cnr 84.0380

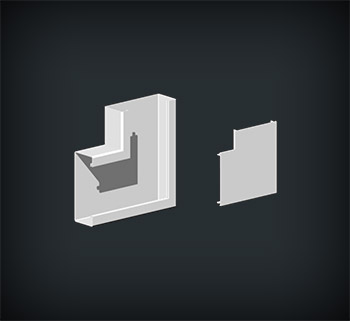

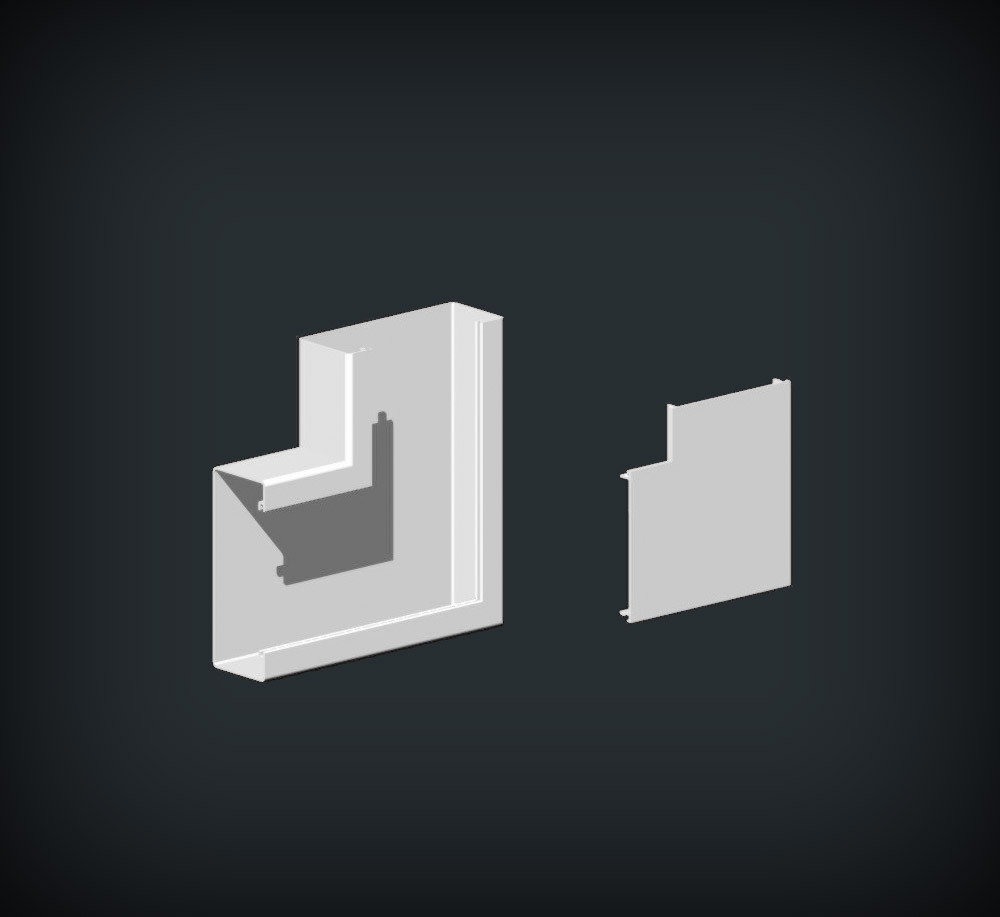

Flat Bend Left/right identical 115.1400
Cover - incl ith Flat bends 84.0470

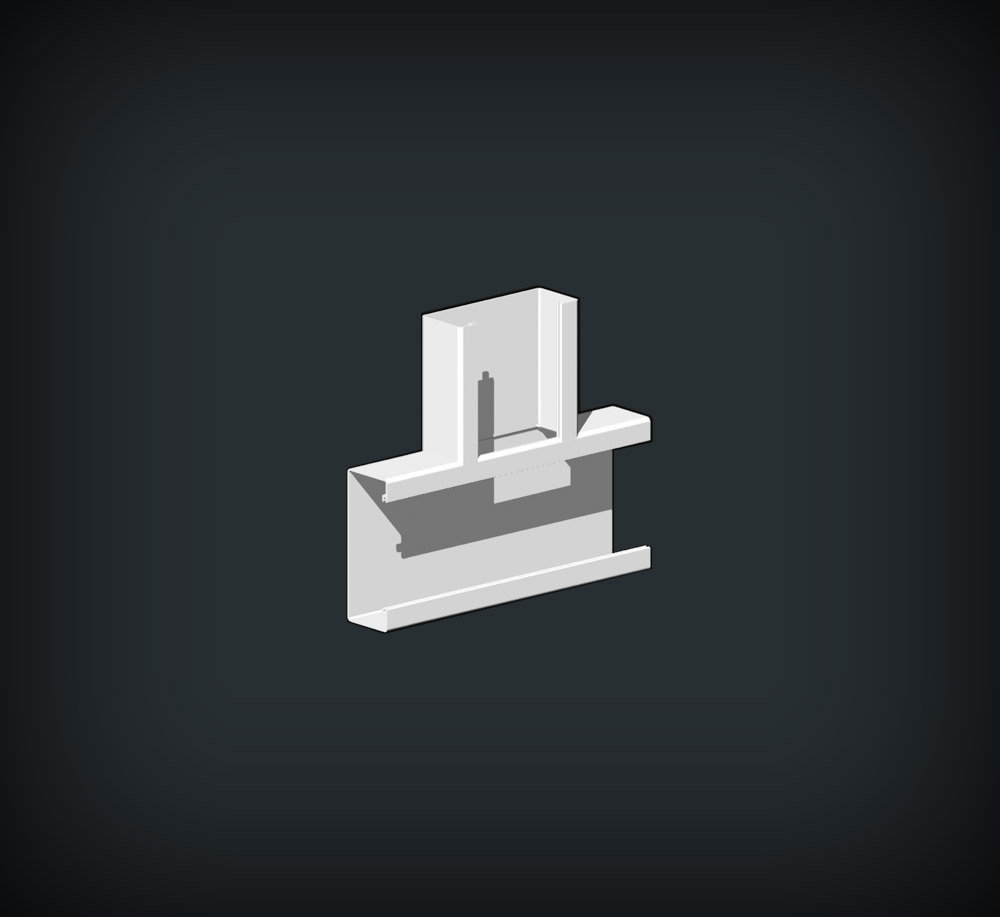

Flat T Intersection
115.1500

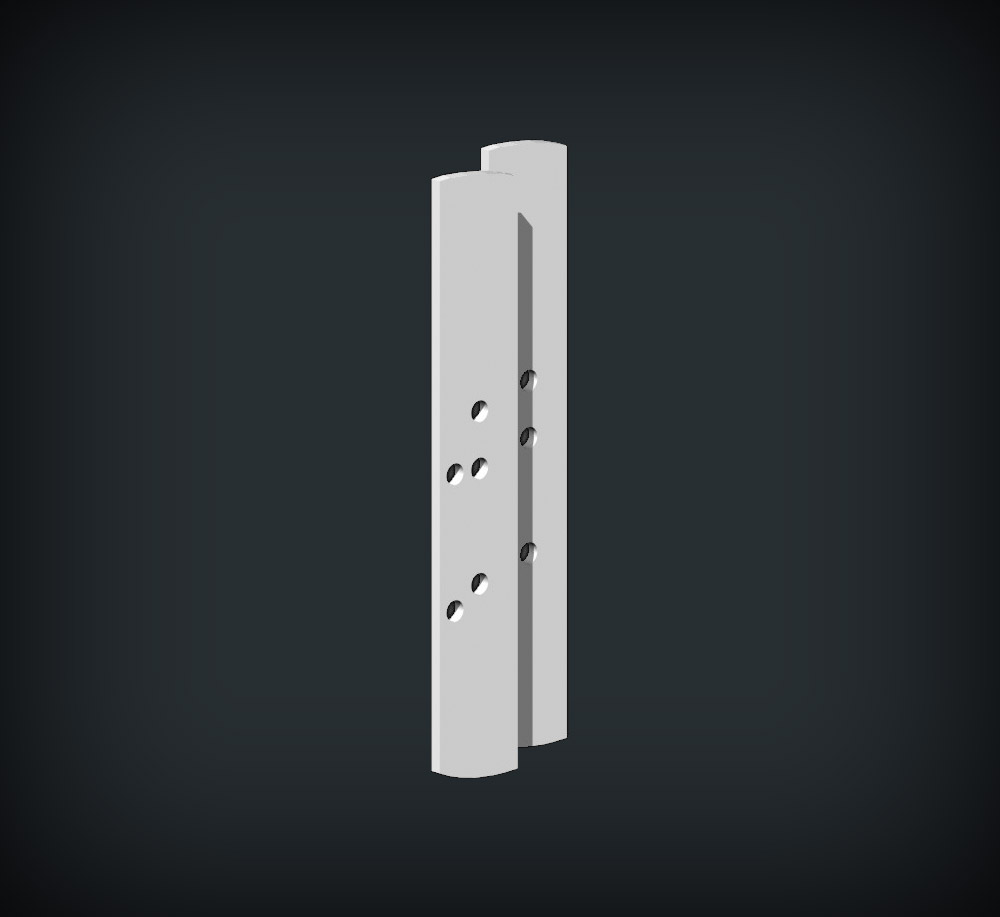

Joining Pieces
Rivet - screw fix supplied in pairs
10.0100

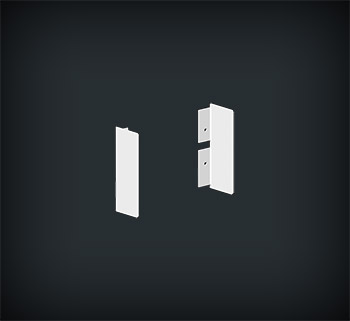

45 Degree End Caps ... For use near doorways
Left Ending - 115.1600
Right Ending - 115.1600

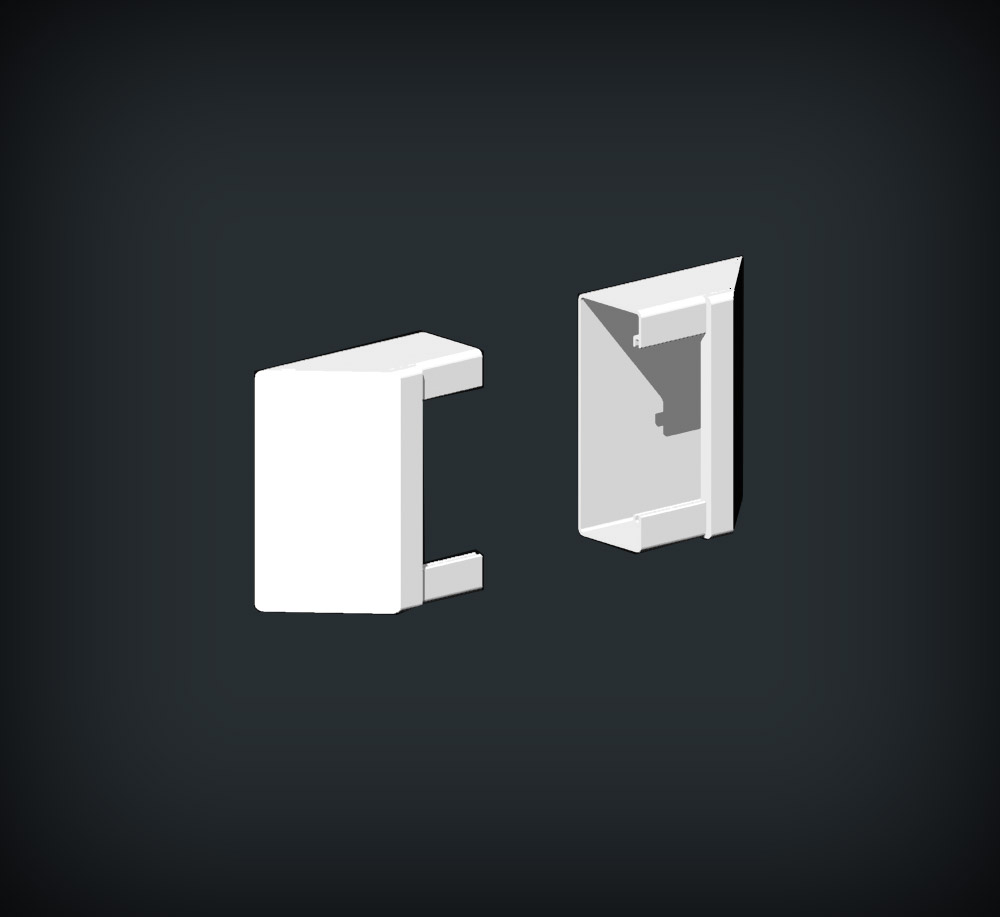

90 Degree End Cap
Right and Left Endig.
Rivet - screw fix to profiles. 115.0620
Power and Data

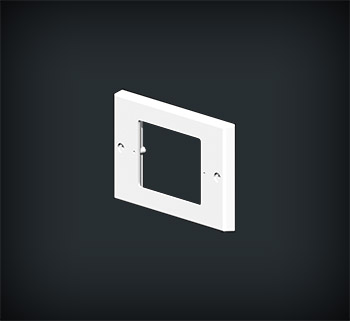

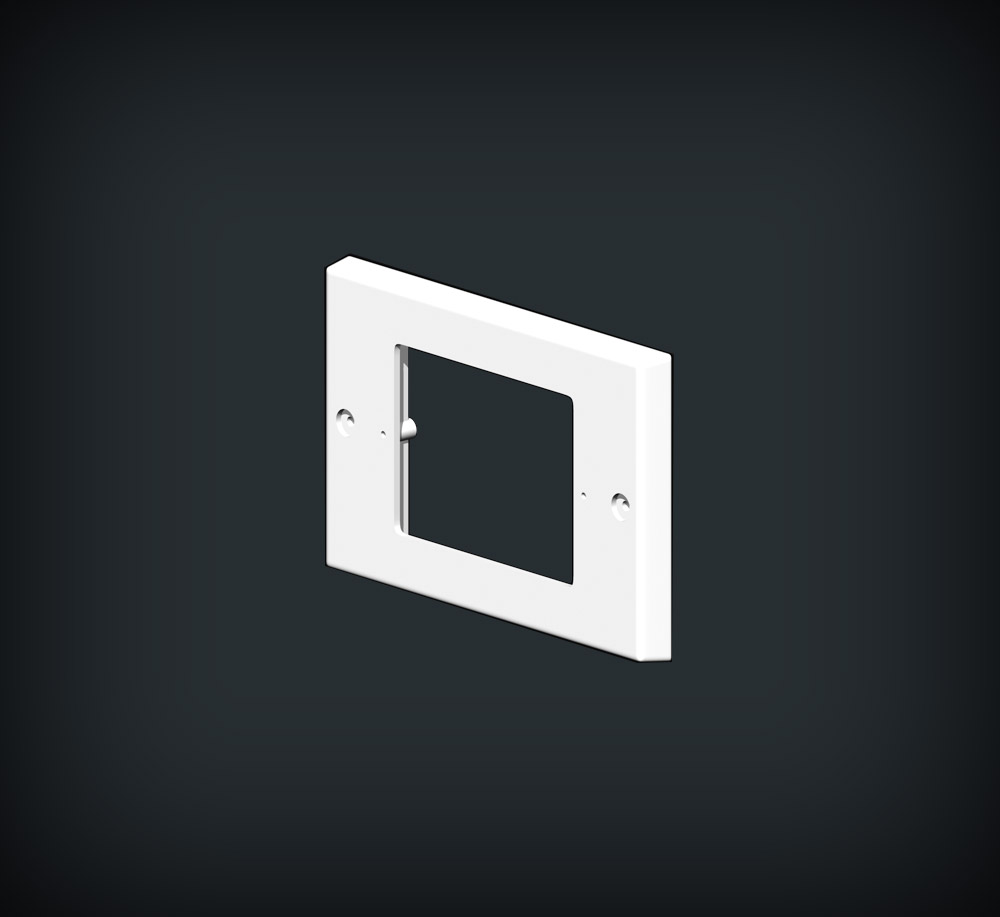

Fixing Plates
84.0040 supplied in pairs
PDL 591CP Conversion Unit to allow standard power and data fittings
