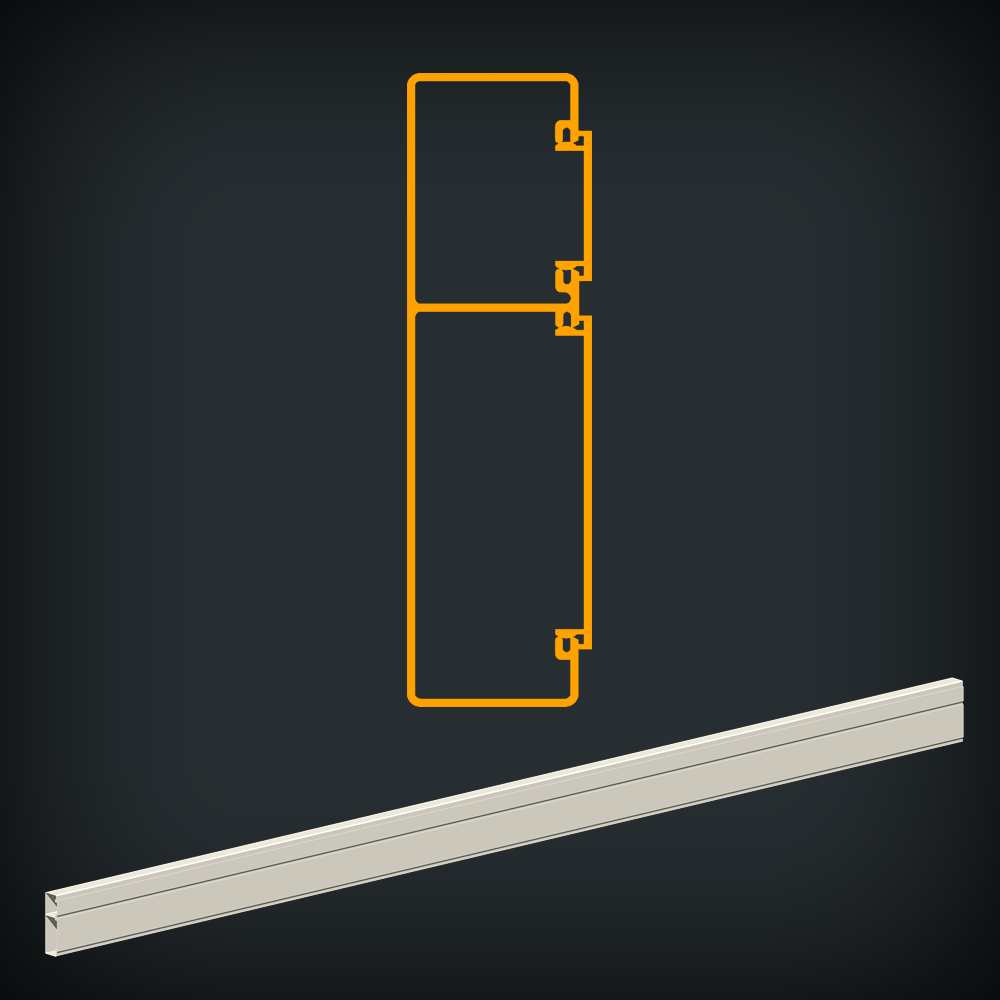

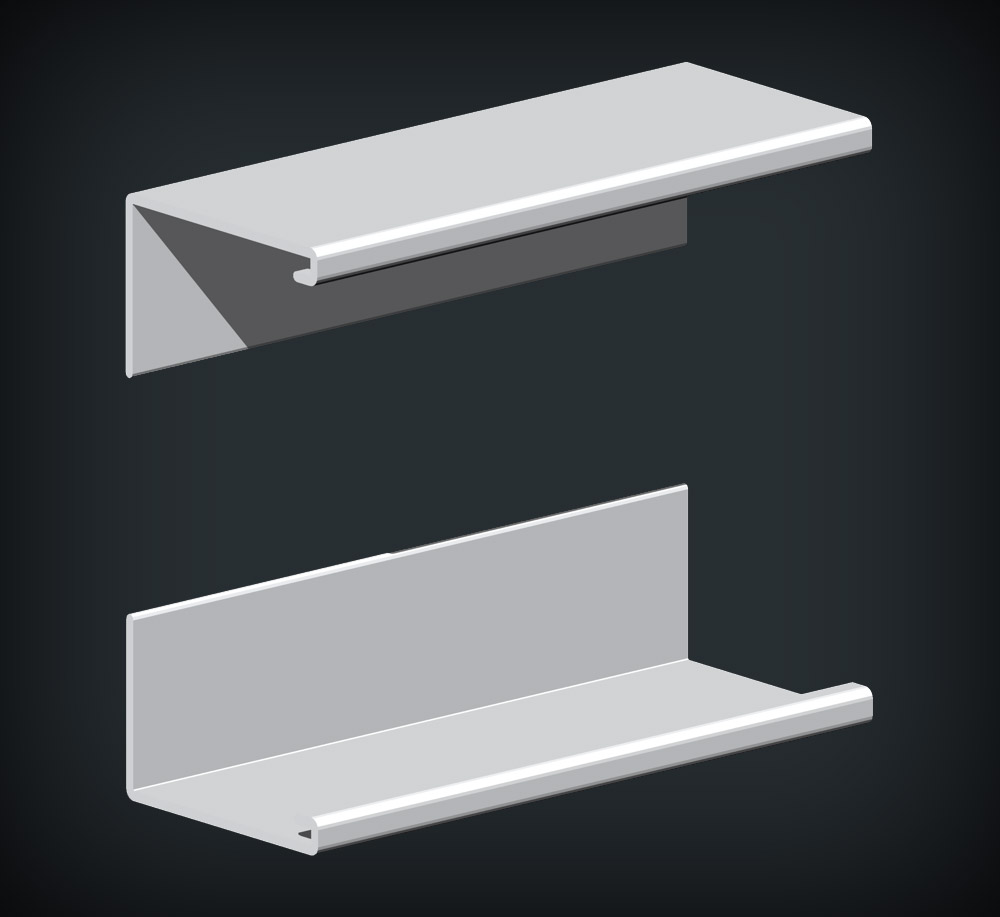

Profile lengths include covers.
3m - 160.2130
6m - 160.2160
Bottom channel requires adaptor plate for std outlet
Column Surrounds:
Site dimensions required
Corner cover pieces included
Two Sides - 160.2920
Three Sides - 160.2930
Four Sides - 160.2940
Fabricated in two parts with
provision for dropper feeds if req

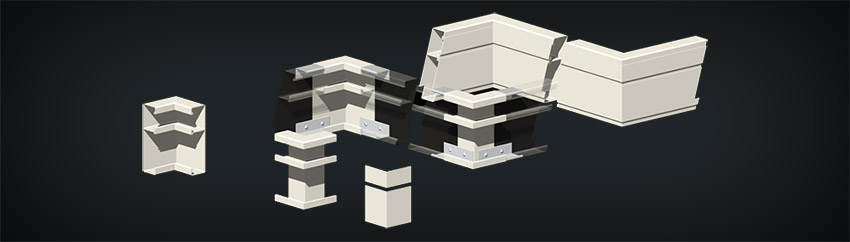

Internal corners 160.2300 - 100x100x160
External corners 160.2310
External corner - covers only 160.2320 (set)
Commonly requested factory fabricated components shown, custom fabricated units also available.

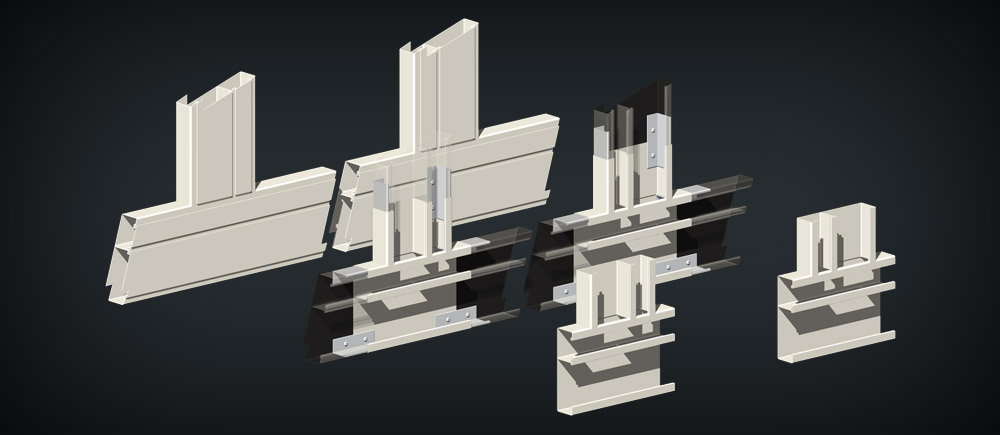

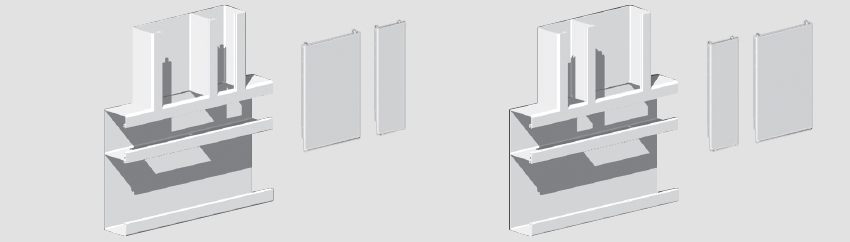

Flat T intersection data left 160.2500
Flat T intersection data right 140.2510 - 250x260

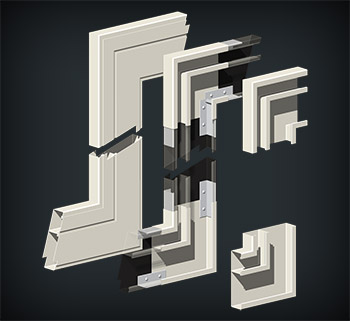

Flat bend data internal 160.2400
Flat bend data external 160.2410 - 200x200

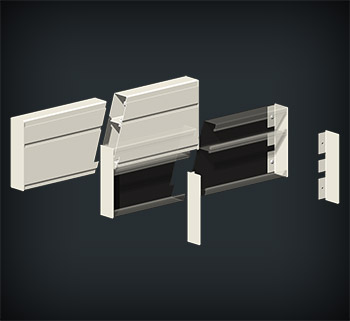

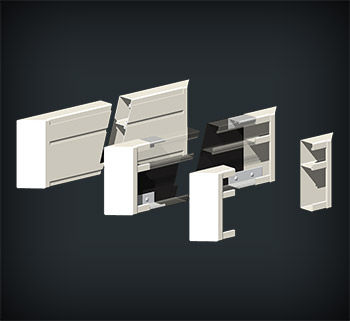

90 degree end cap - rivet or screw fix to profiles. 160.2620
45 degree end cap right ending - 160.2610
45 degree end cap left ending - 160.2600
Joining pieces - rivet or screw fix supplied in pairs - 10.0000

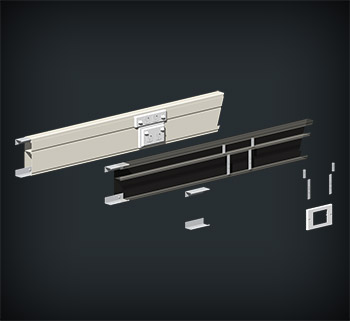

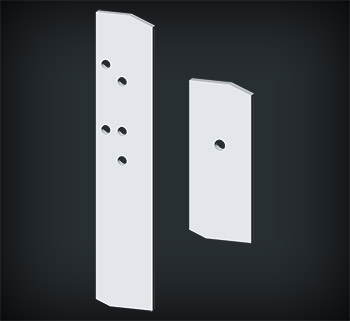

Power and data fixing plates
Upper power channel - 38.0040 (pair)
Lower data channel - 84.0040 (pair)

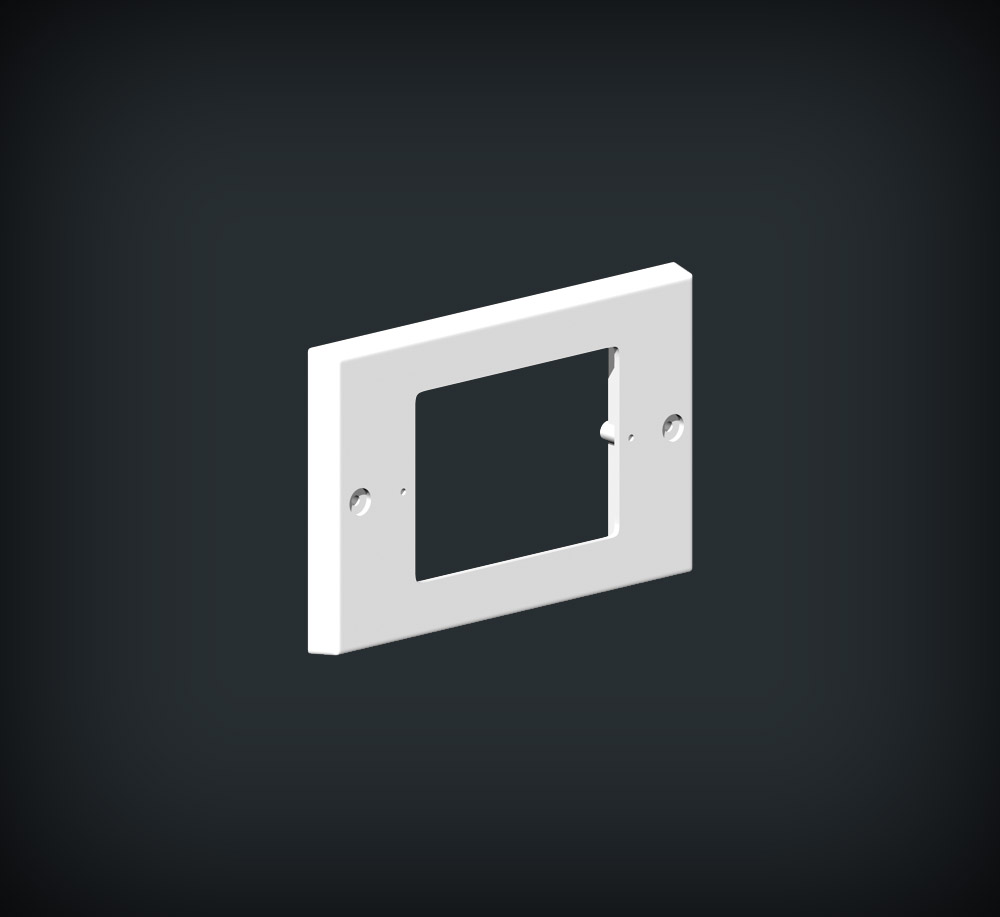

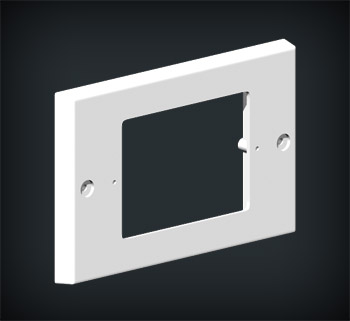

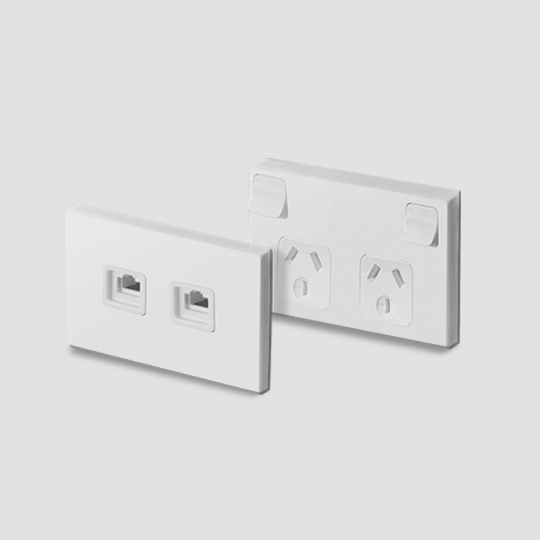

Conversion plate for standard outlets
Joining pieces - rivet or screw fix supplied in pairs - 10.0000
