Profile lengths include covers.
3m - 115.2136
6m - 115.2166
Column Surrounds:
Site dimensions required,
Corner cover pieces included
Two Sides - 115.2626
Three Sides - 115.2636
Four Sides - 115.2646
Fabricated in two parts with provision for dropper feeds if req
Commonly requested factory fabricated components shown. Custom fabricated units a specialty.
Internal corners - 115.2306
External corners w Cnr cvrs - 115.2316
Replacement Corner Covers - 38.0380 (set)
Flat T intersection data right - 115.2516
Flat T intersection data left - 115.2506
Flat Bend Data Internal - 115.2406
Flat Bend Data External - 115.2416
When ordering Flat Bends remember the upper channel is smaller inside.
90 Degree end cap, Left & Right ending.
Rivet or screw fix to profiles - 115.0626
45 Degree end caps right ending - 115.2616
45 Degree end caps left ending - 115.2606

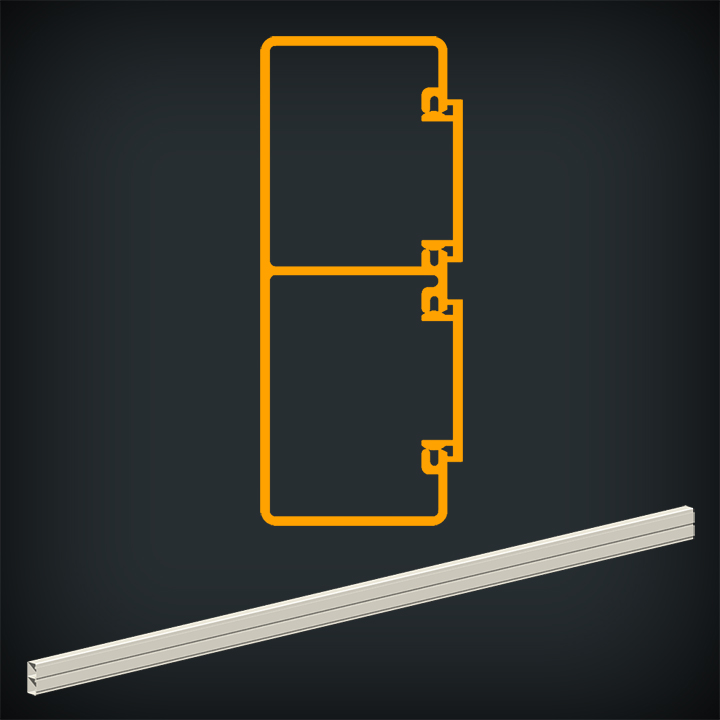

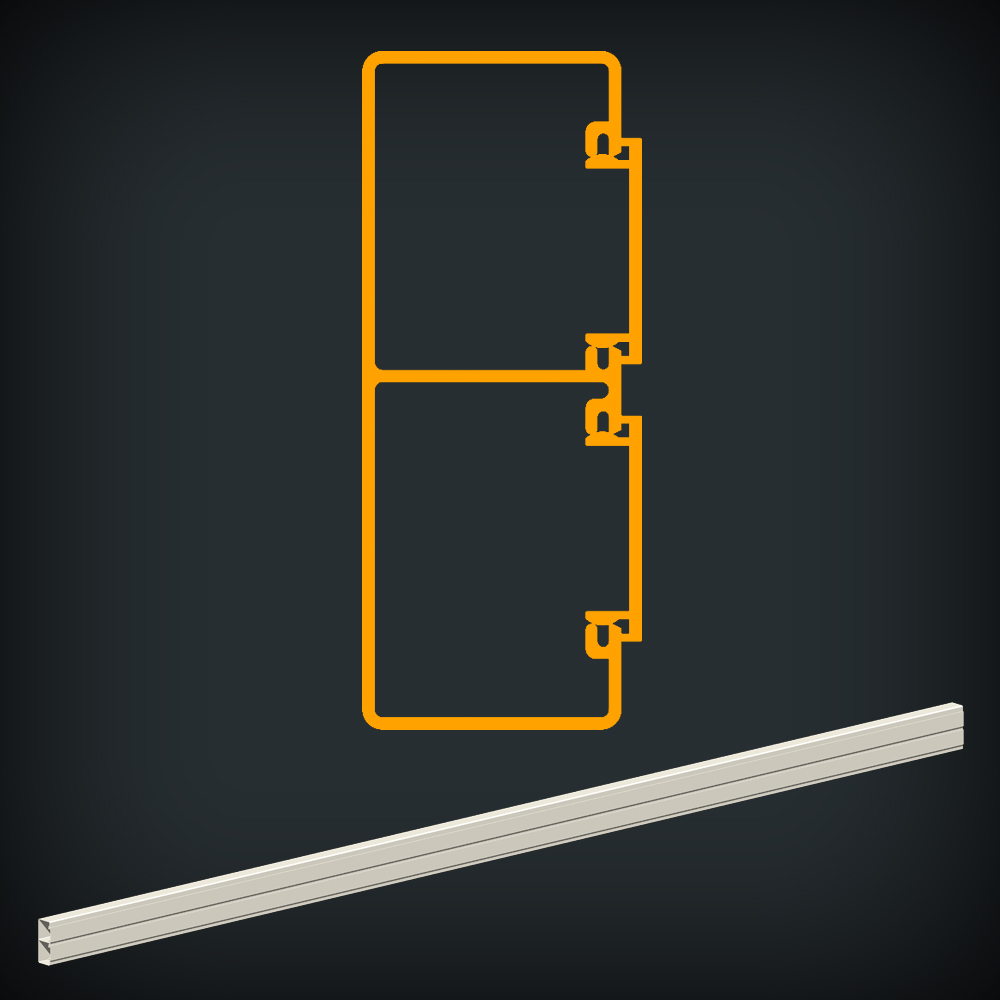

Trunking accepts Slimline/Workshop outlets in the upper Power channel (smaller) and the lower Data channel (larger).
Power and Data Fixing Plates - 38.0040 (pair)
Joining pieces - rivet or screw fix - 10.0106 (pair)
