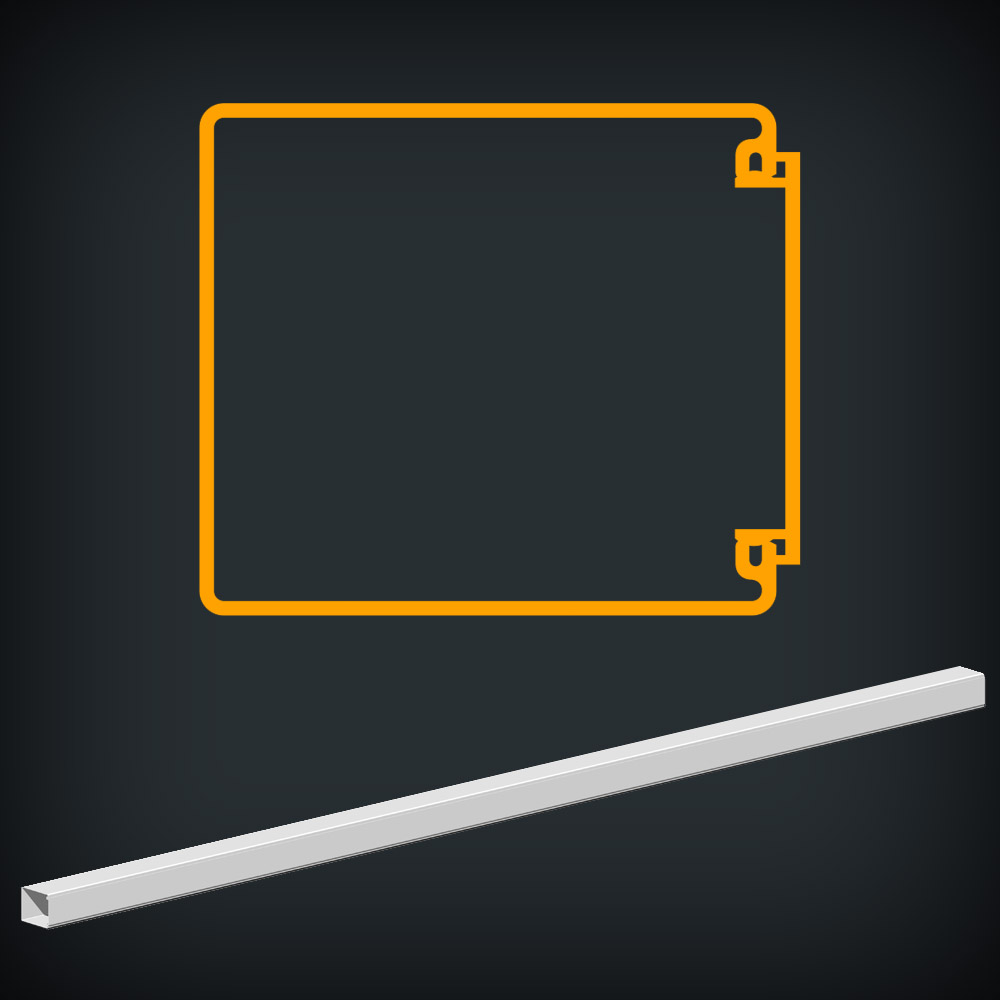

Cat 6A 91/1
89 x 100mm
Profile lengths include covers
3.1m - 91.1136
6.2m - 91.1166
Column Surrounds: Site dimensions required,
Corner cover pieces included.
Two Sides - 91.1926
Three Sides - 91.1936
Four Sides - 91.1946, is fabricated in two parts; includes joiners and provision for dropper feeds.

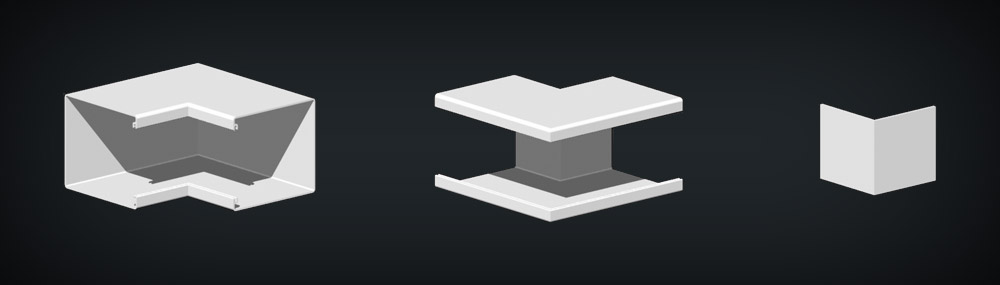

Internal Corners 91.1306
External Corners 91.1316 - supplied complete with Corner Cover 70.0380
Requires 2 joiner pairs 91.0106 - these are unique to this profile, purchased separately.

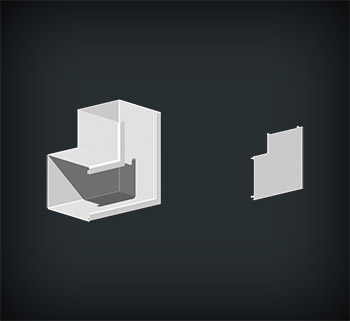

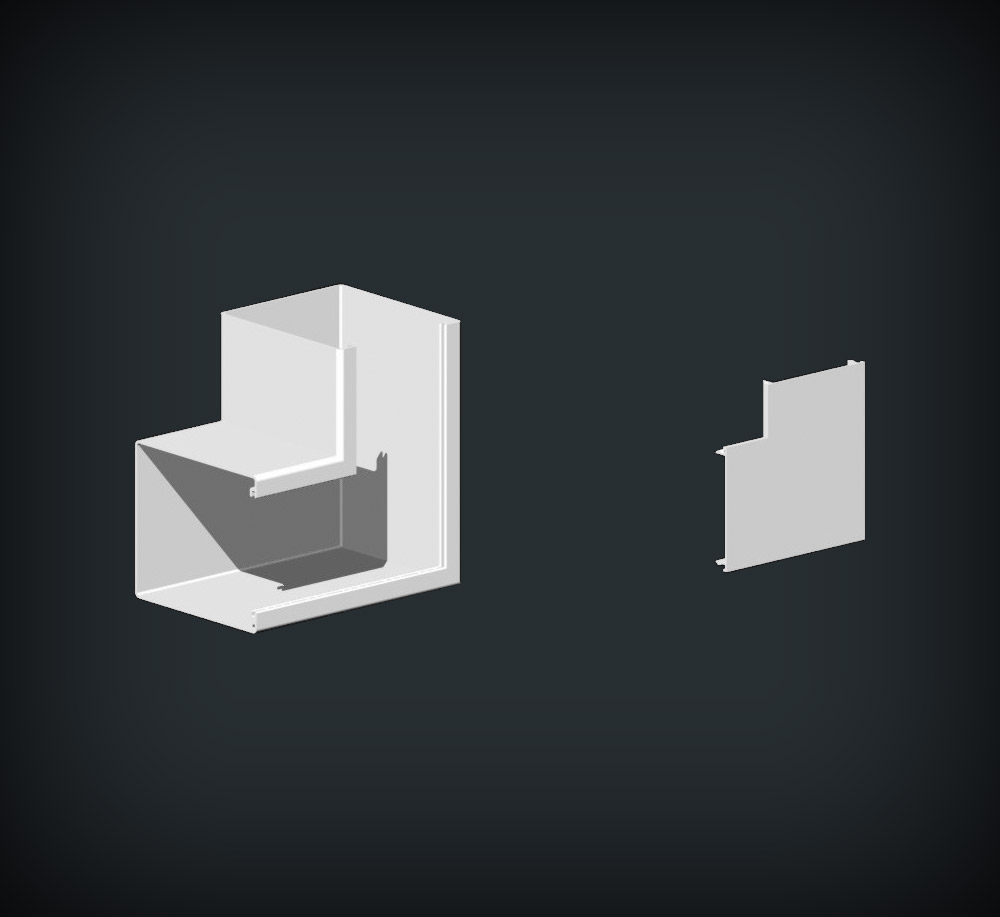

Flat Bend Left/right identical 91.1406
Cover - incl with Flat Bends 70.0470

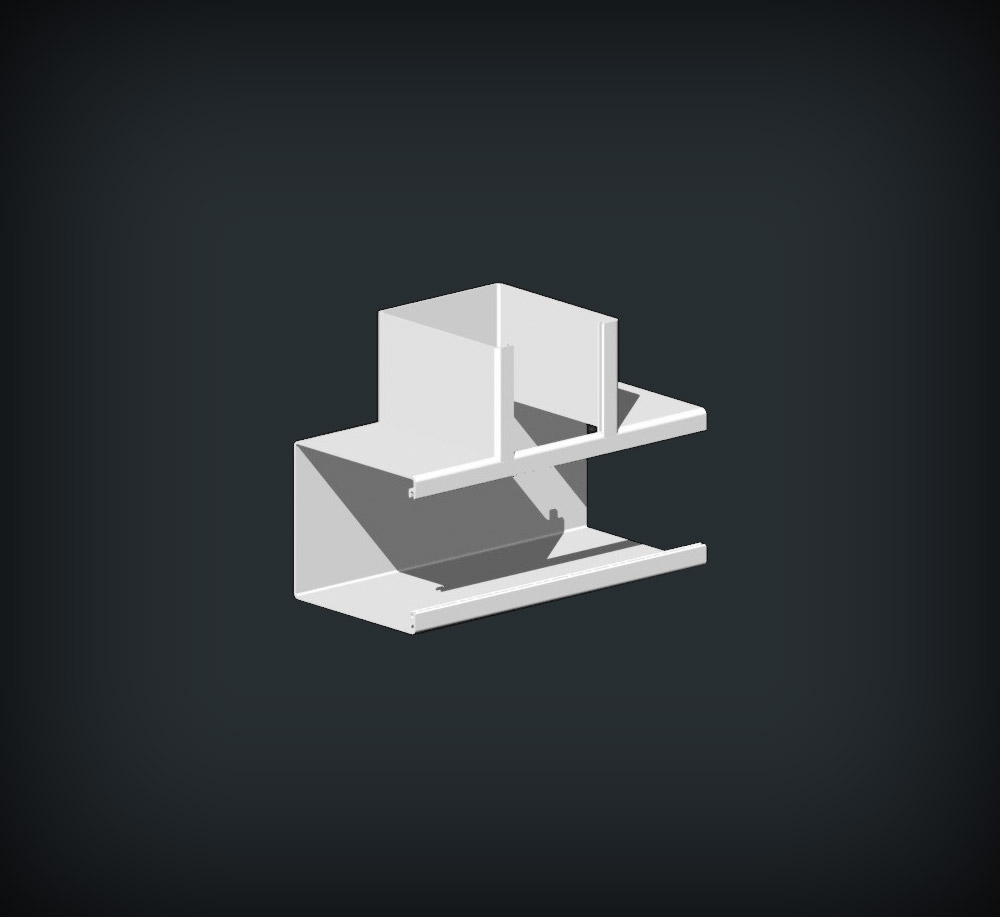

Flat T Intersection 91.1506

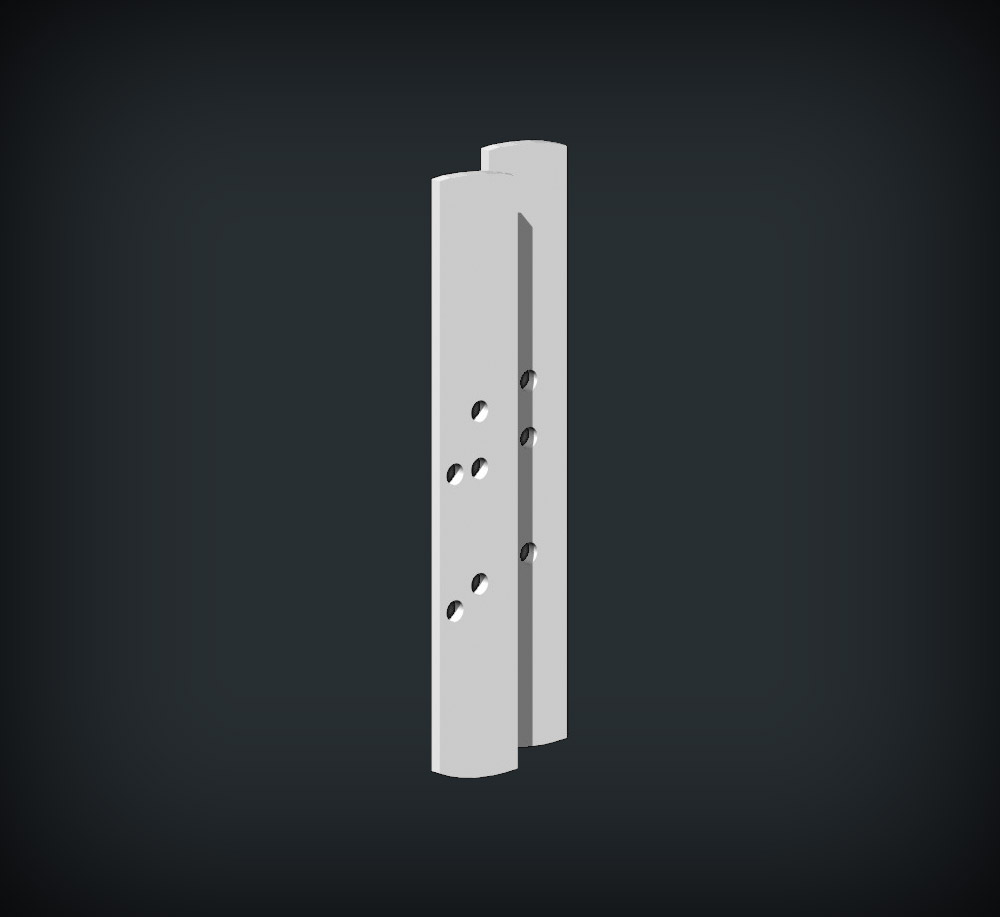

Joining Pieces
Rivet or screw fix. Supplied in pairs - 91.0106

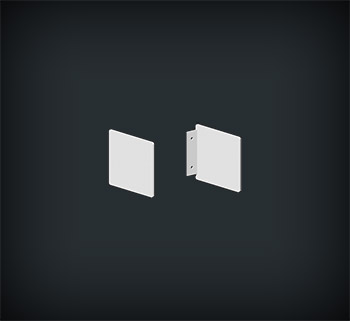

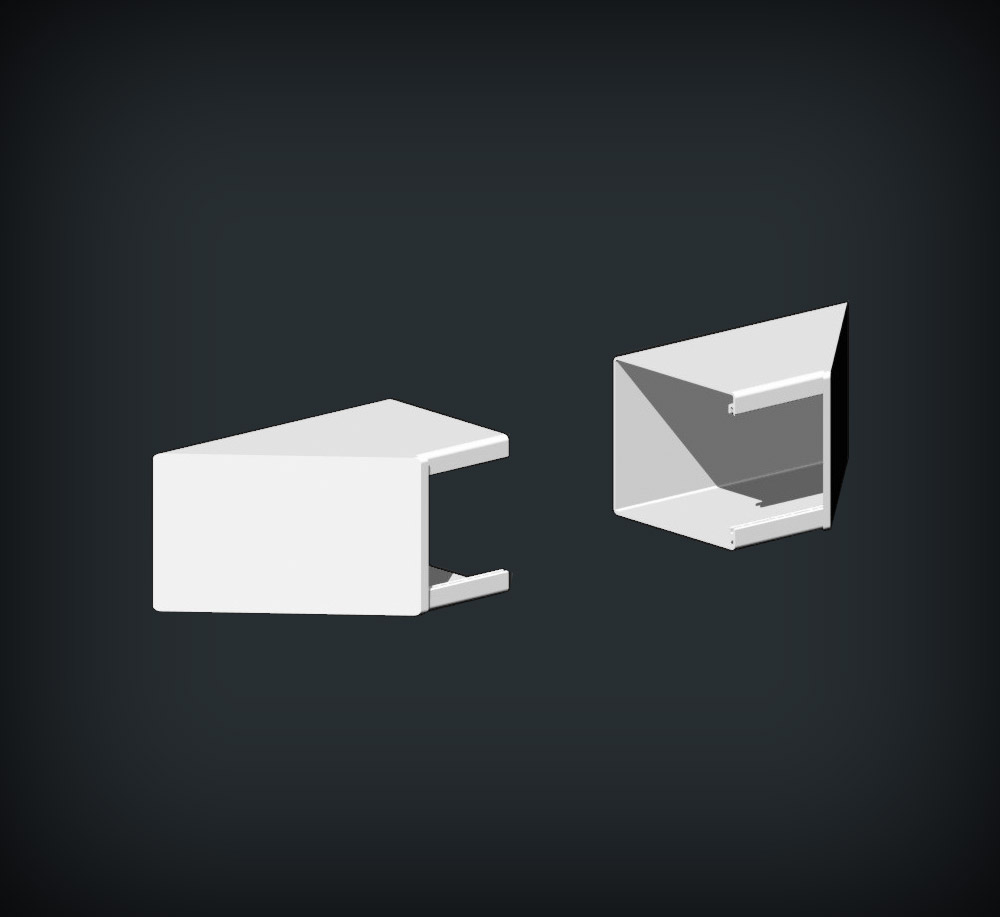

45 Degree End Caps Left or Right Ending 91.1606

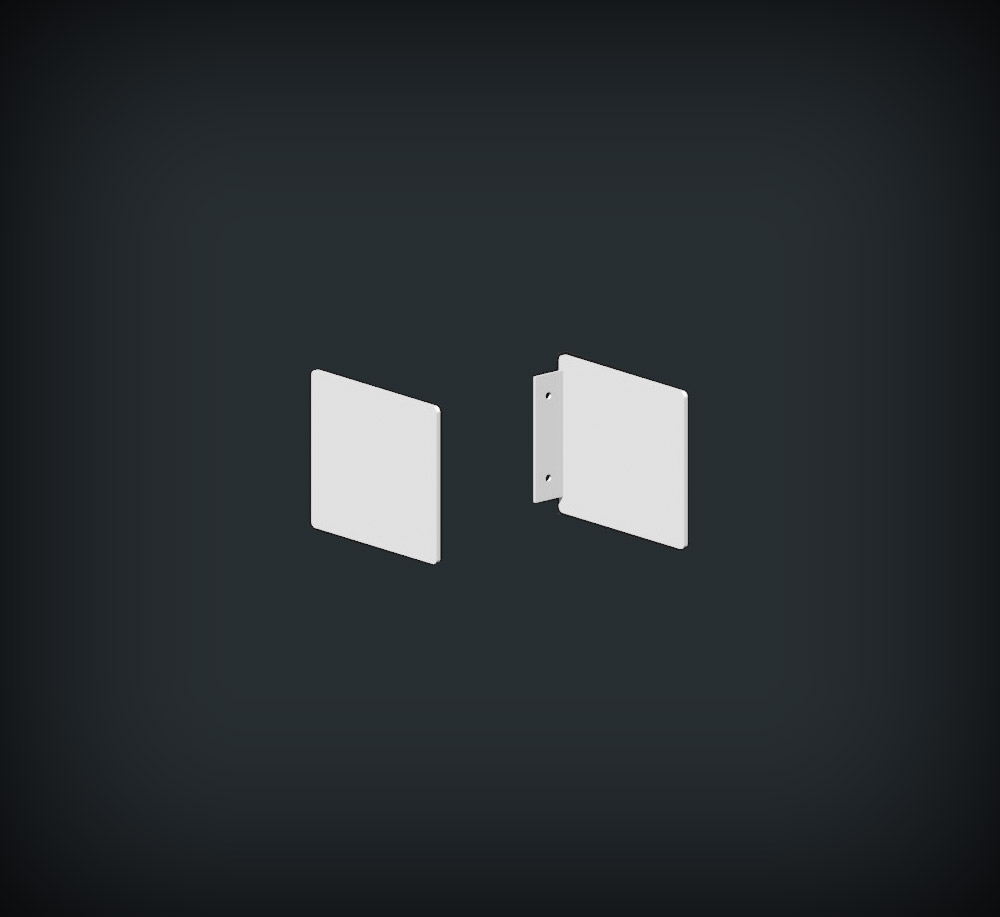

90 Degree End Cap Left or Right Ending. Rivet - screw fix to profiles. 91.0626

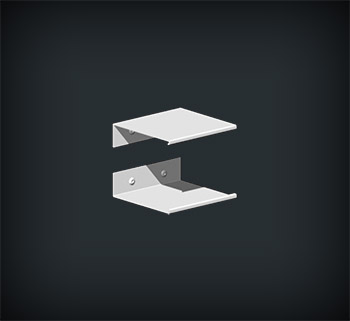

Power and Data Fixing Plates - 70.0040 supplied in pairs, one pair per outlet
