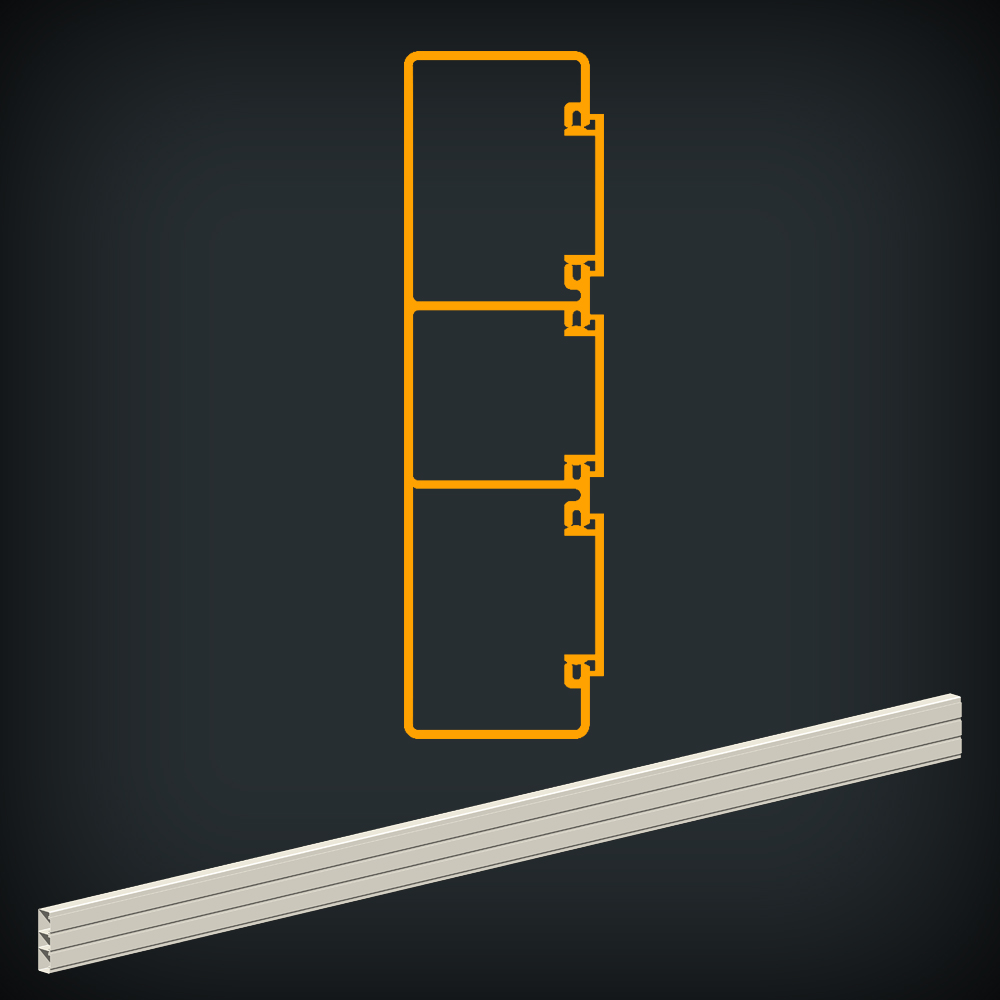

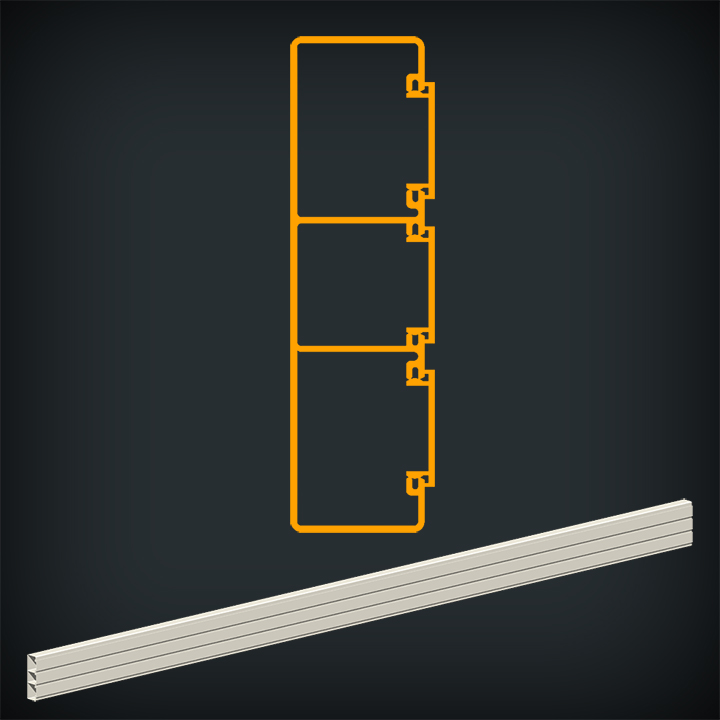

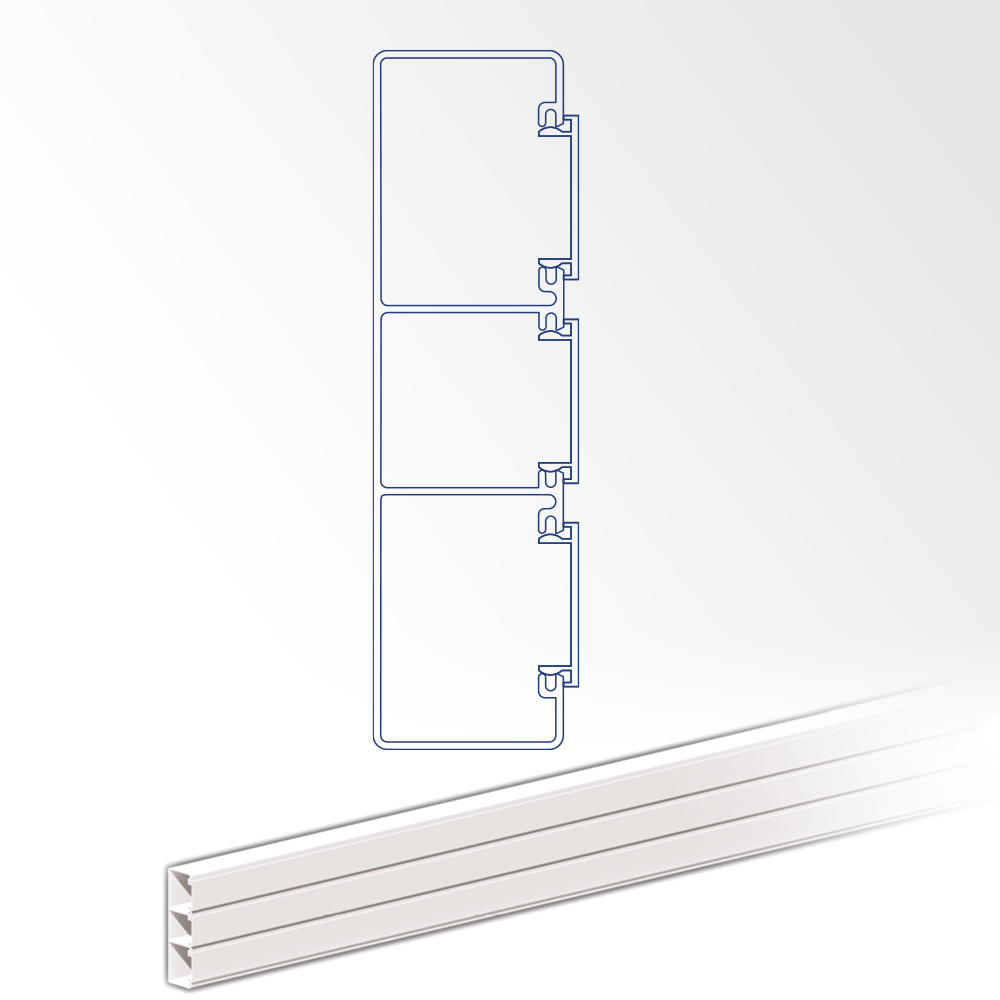

Profile lengths include covers. Central channel is smaller.
3m - 160.3130
6m - 160.3160
Column Surrounds:
Site dimensions required,
Corner cover pieces included
Two Sides - 160.3920
Three Sides - 160.3930
Four Sides - 160.3940
Fabricated in two parts with provision for dropper feeds if req.

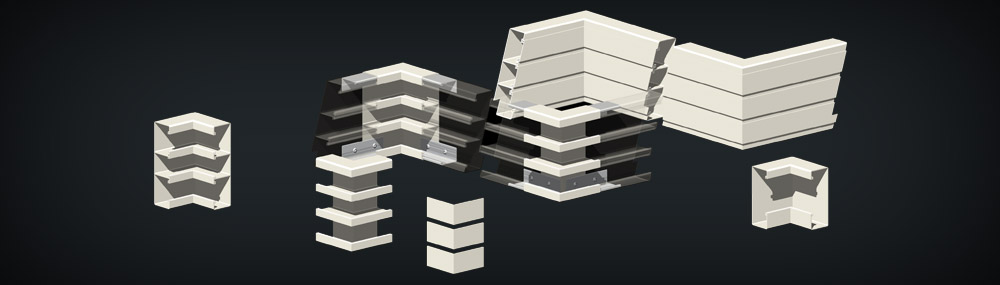

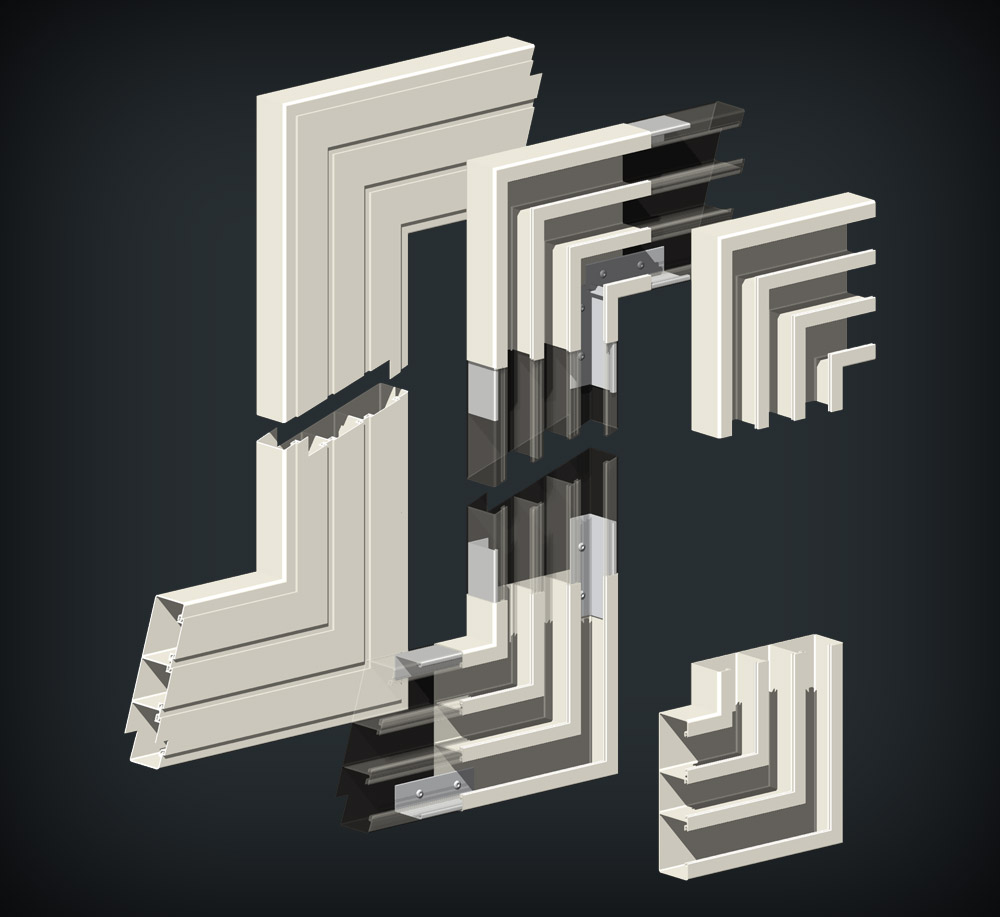

Internal corners 160.3300
External corners w Cnr cvrs 160.3310
Corner covers (Repl) - 3 x 38.0380
Custom fabricated units also available.

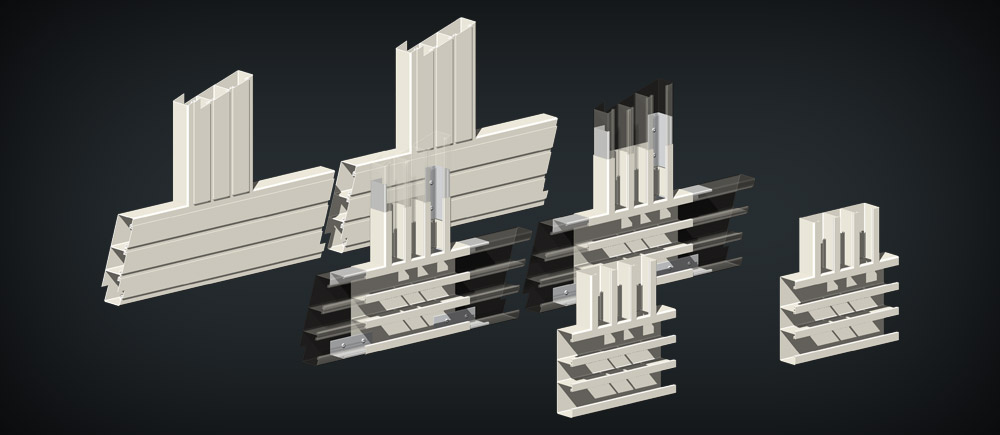

Flat T intersection 160.3500
Flat bend 160.3400
Corner covers (Repl) 3 x 38.0470

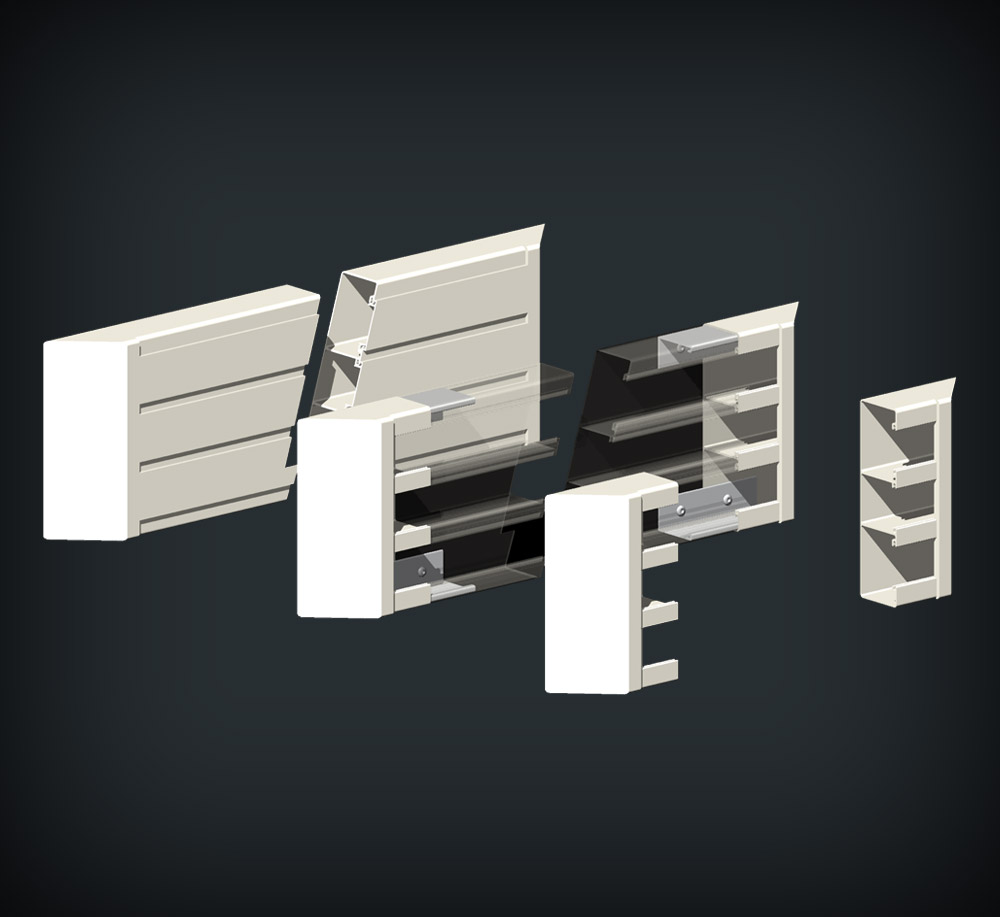

90 degree end cap - rivet or screw fix to profiles. 160.0620

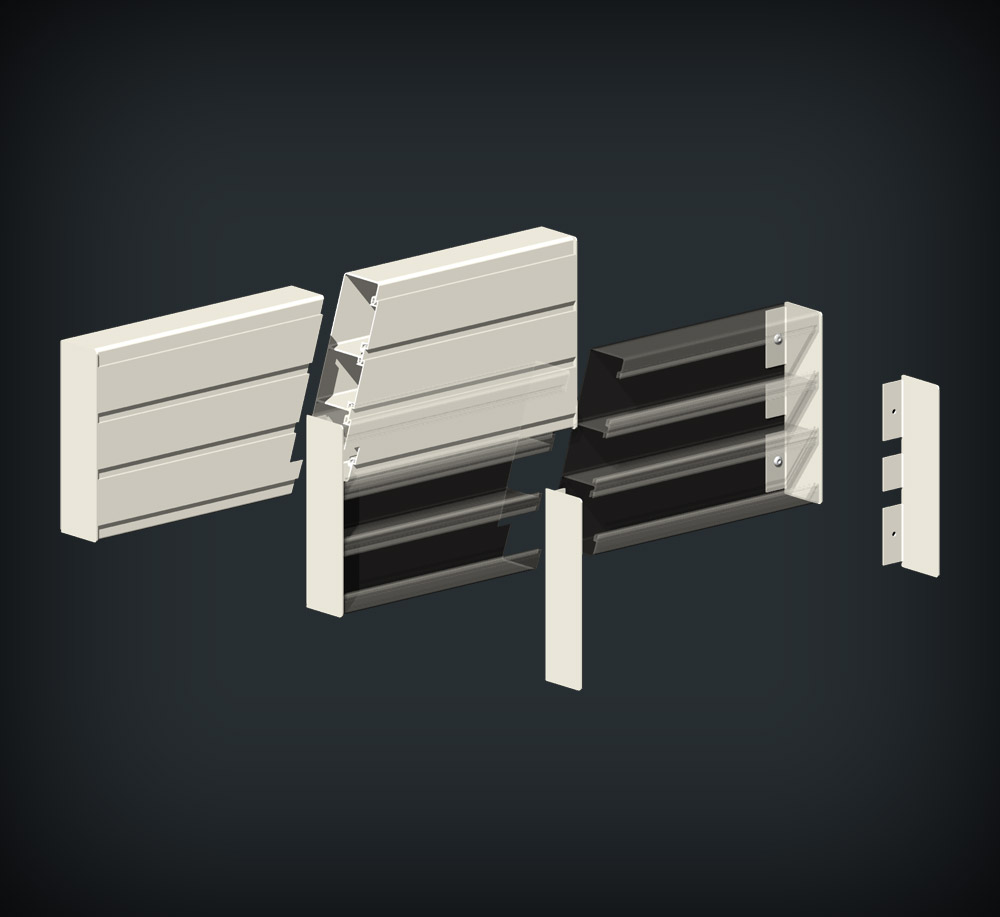

45 degree end cap right ending - 160.3610
45 degree end cap left ending - 160.3600

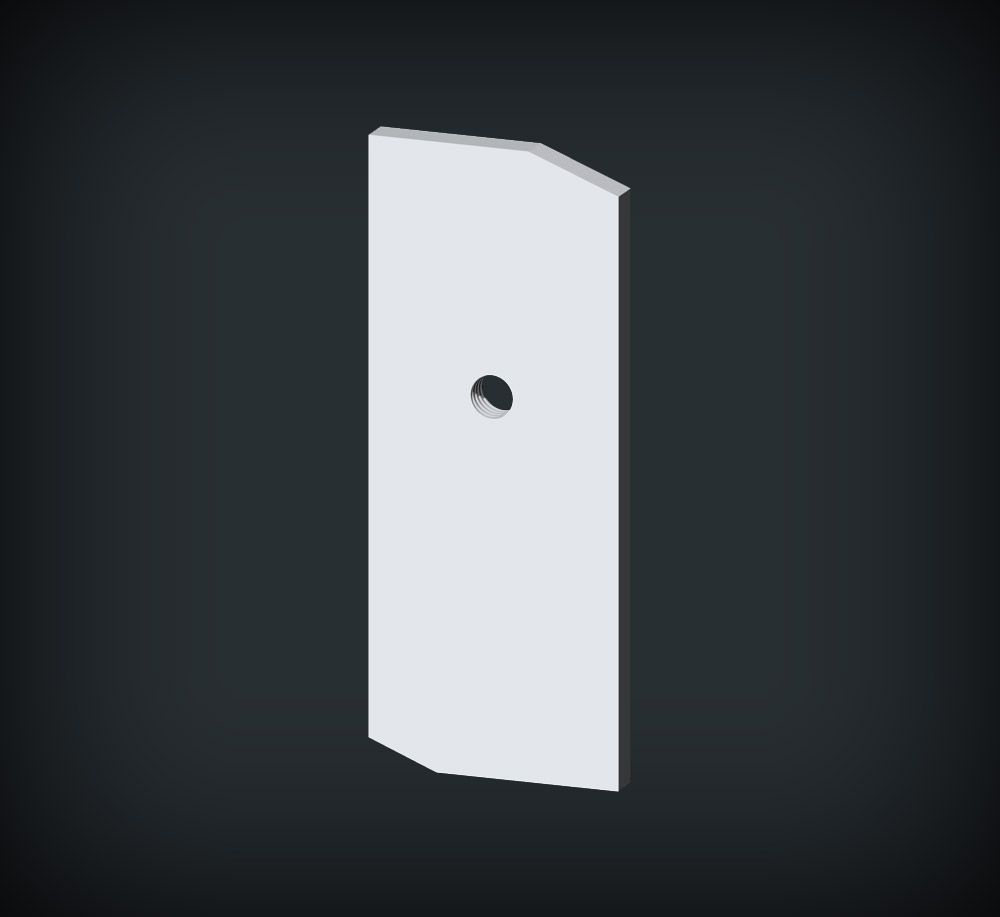

Joining pieces - rivet or screw fix supplied in pairs - 10.0100

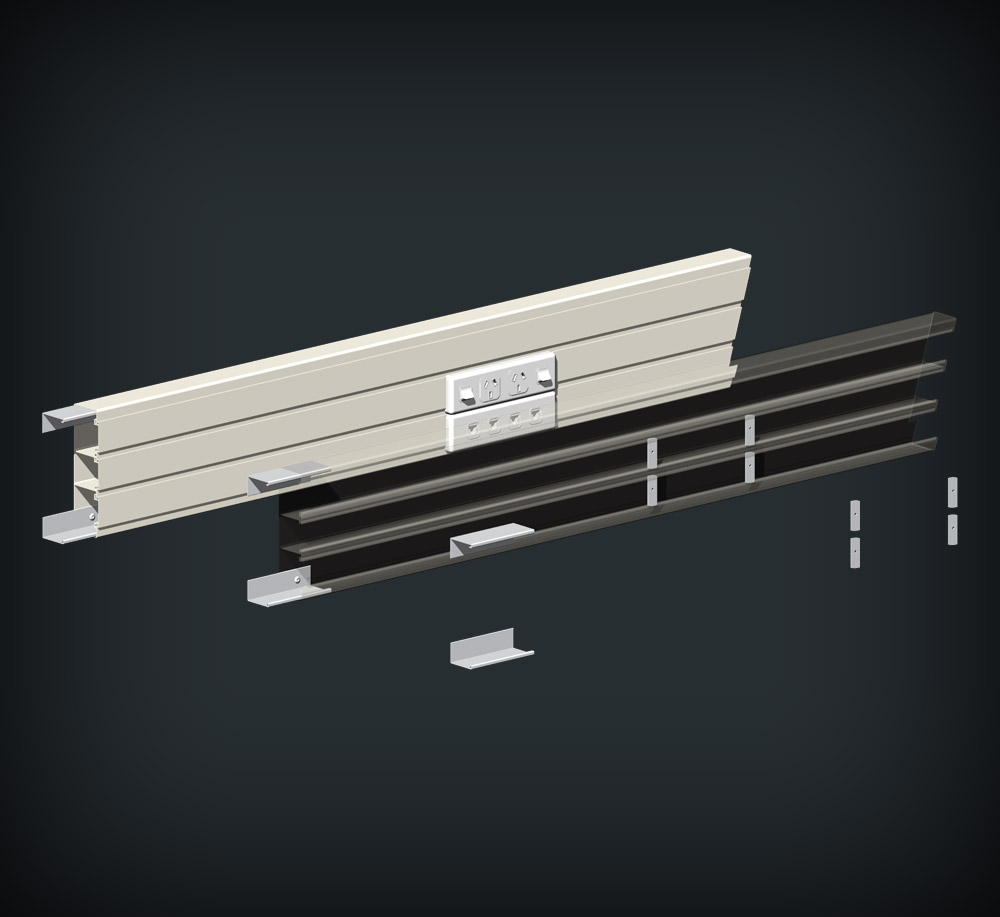

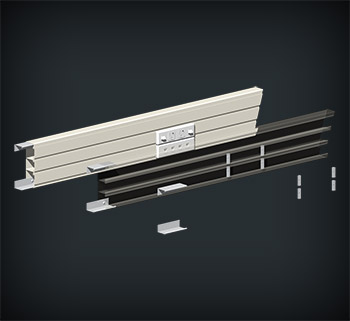

Power and data fixing plates
All channels - 38.0040 (pair)
Joining pieces - rivet or screw fix supplied in pairs - 10.0100
