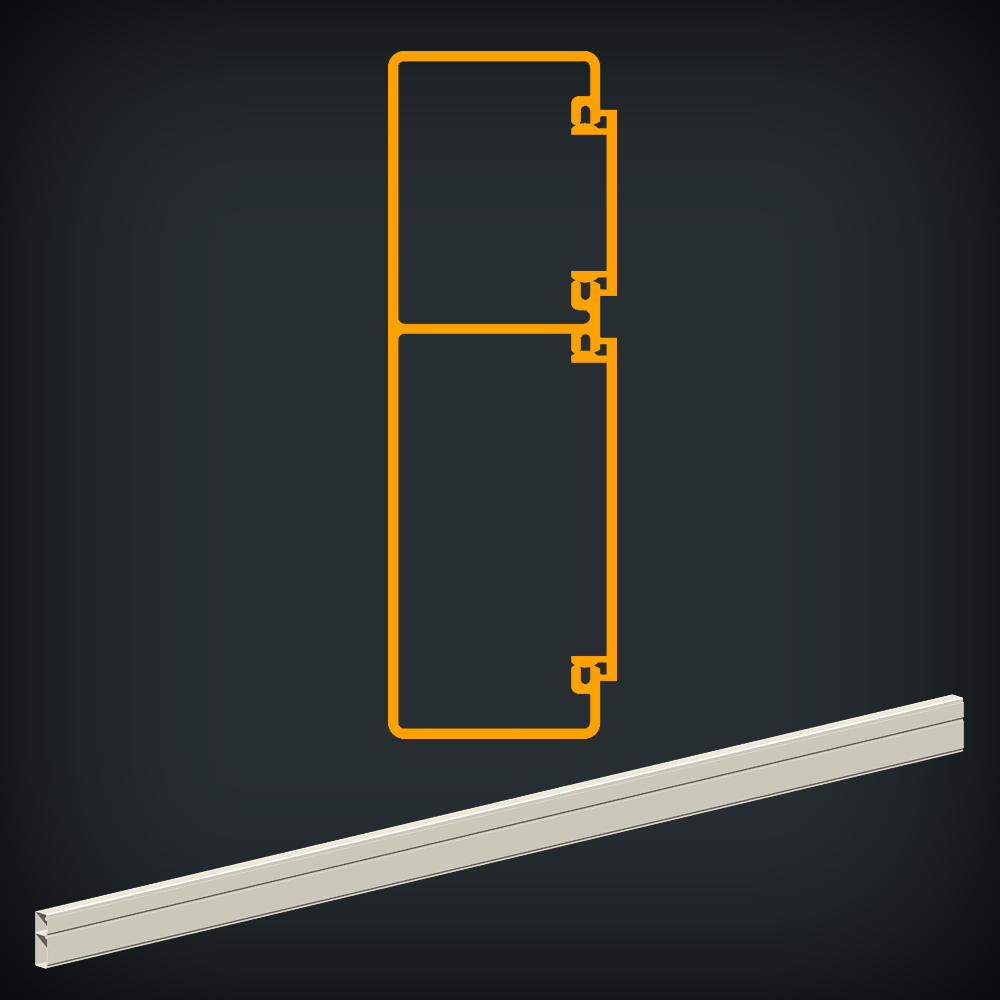

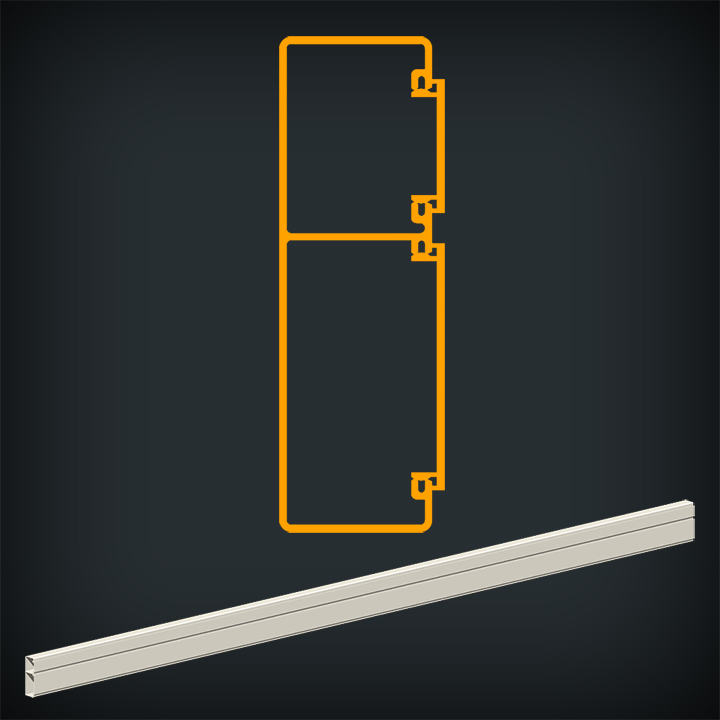

Cat 5 150/2
150x43mm
Profile lengths include covers.
Bottom channel requires adaptor plate for std outlet

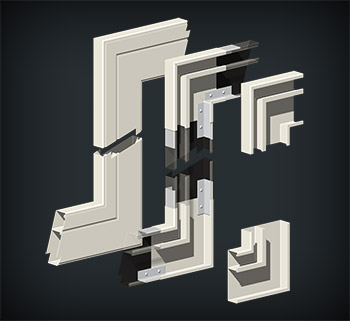

Column Surrounds:

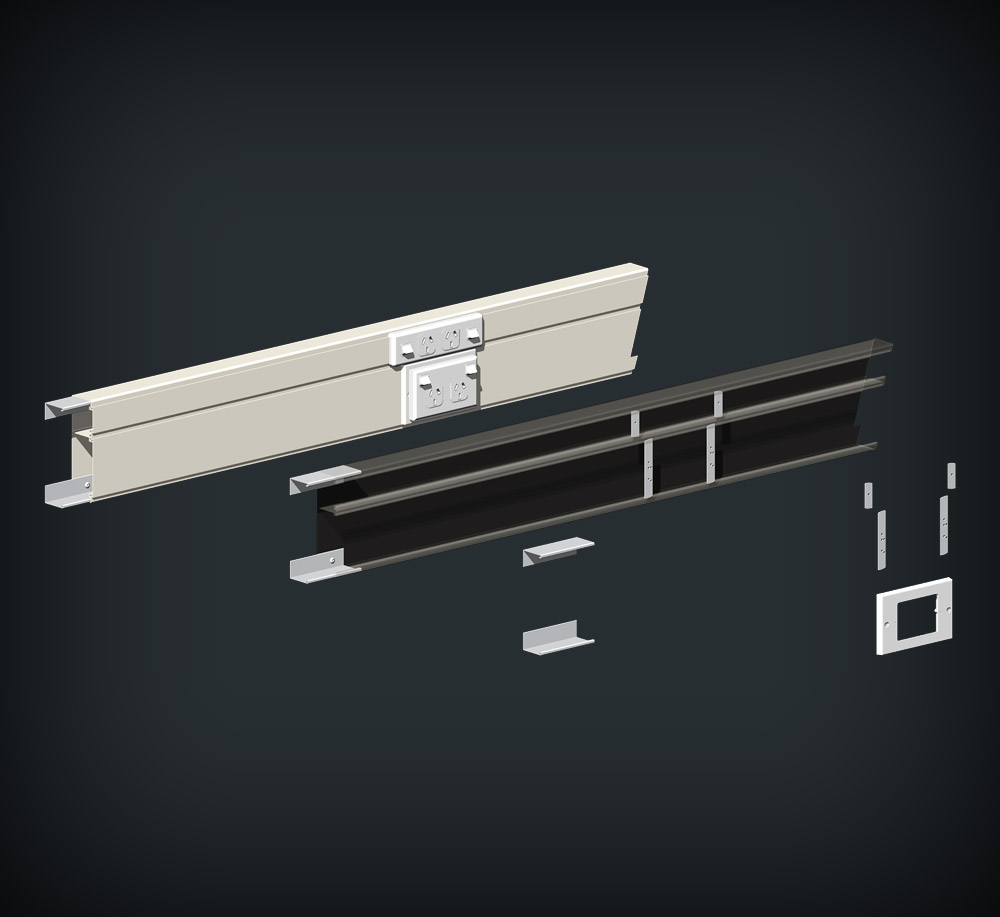

Site dimensions required
Corner cover pieces included
Two Sides - 150.2920
Three Sides - 150.2930
Four Sides - 150.2940
Fabricated in two parts with
provision for dropper feeds if req

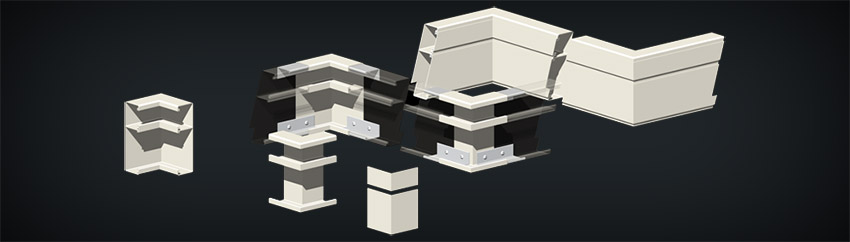

Internal corners 150.2300
External corners 150.2310 w Cnr cvrs
Corner covers (repl) 38.0380, 84.0380
Commonly requested factory fabricated components shown, custom fabricated units also available.

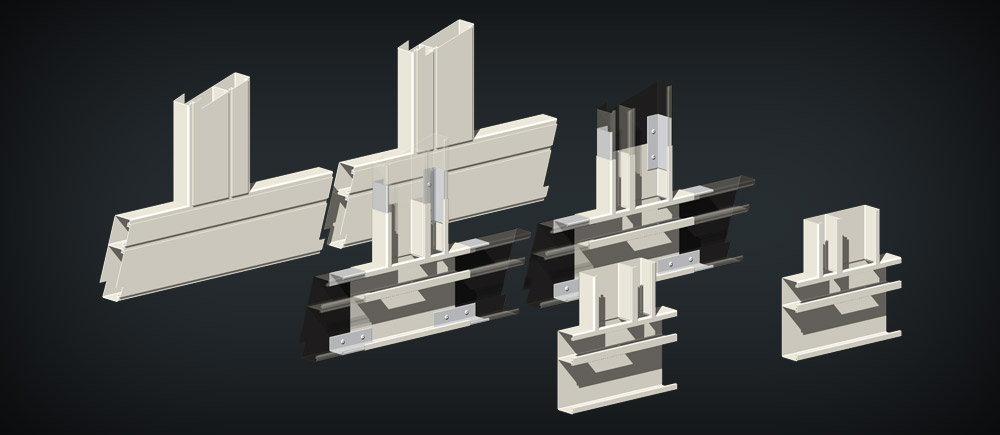

Flat T intersection data left 150.2500
Flat T intersection data right 150.2510 - 250x240
Flat bend data int w cnr cvrs 150.2400
Flat bend datae xt w cnr cvrs 150.2410
Repl corner covers 38.0470 and 84.0470

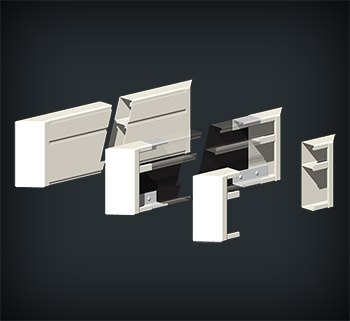

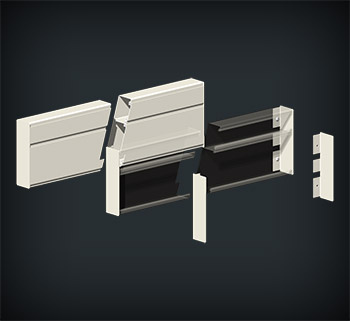

90 degree end cap - rivet or screw fix to profiles. 150.2620
45 degree end cap right ending - 150.2610
45 degree end cap left ending - 150.2600

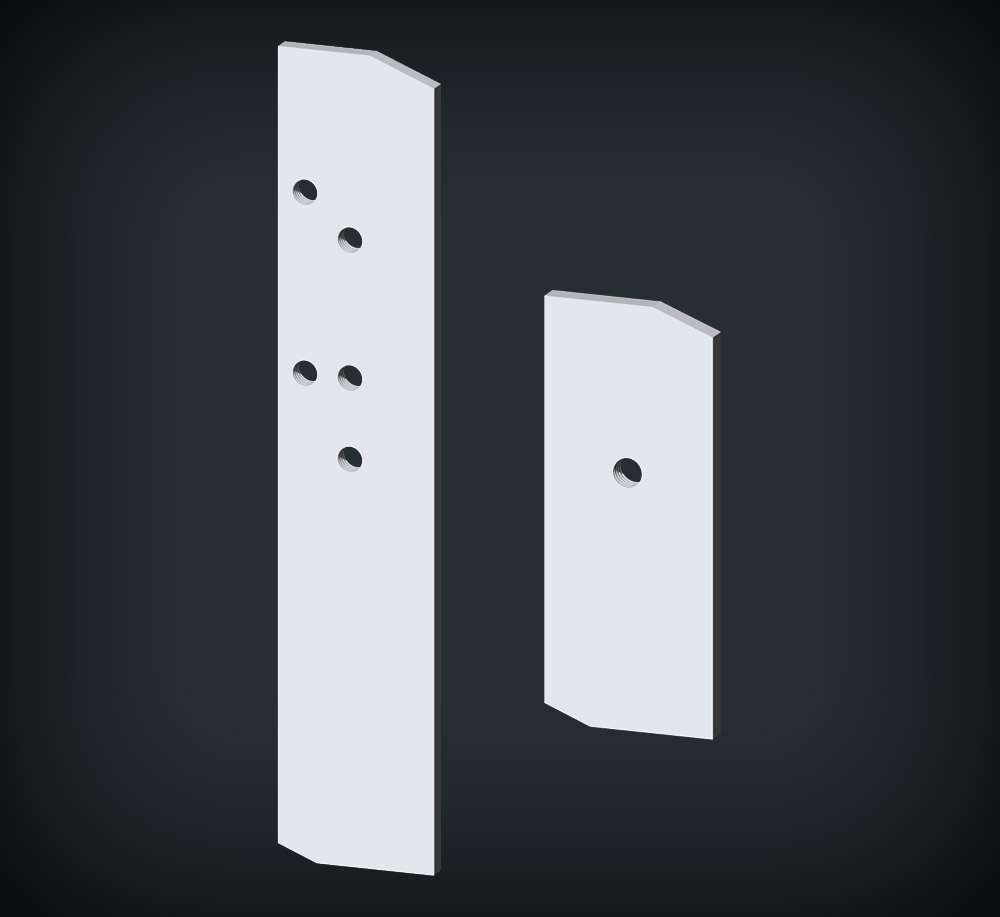

Joining pieces - rivet or screw fix supplied in pairs - 10.0000

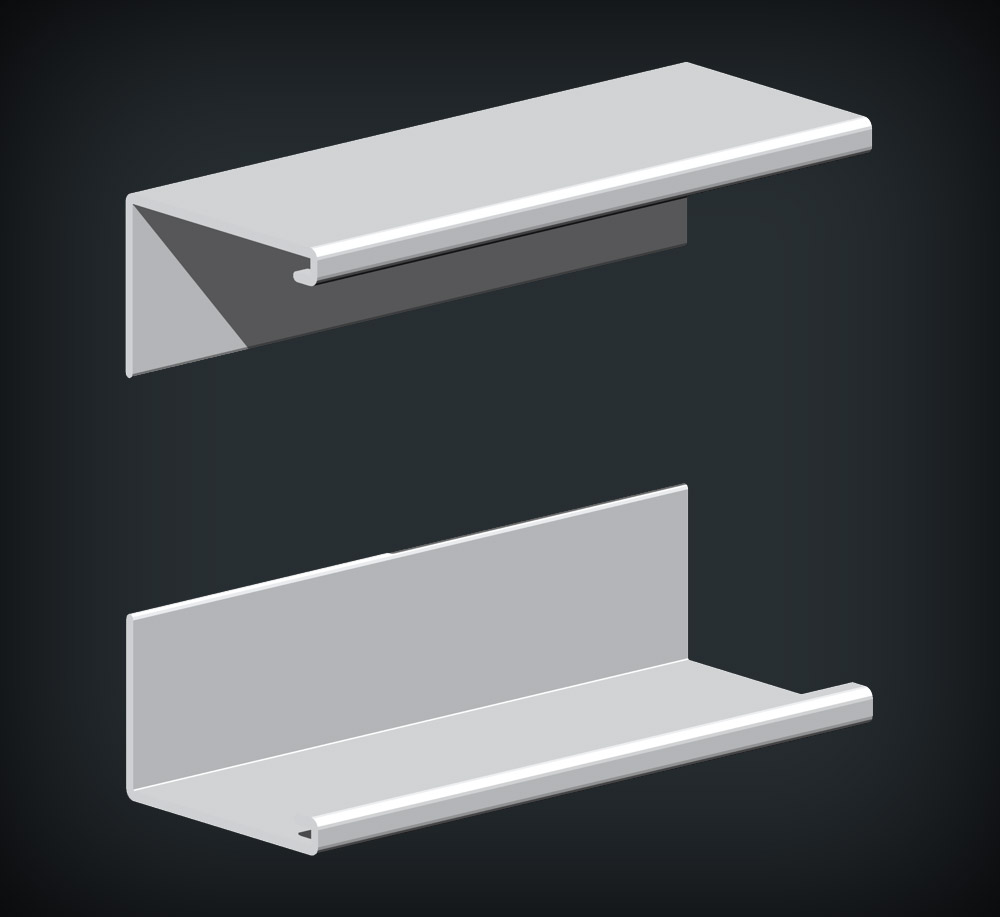

Power and data fixing plates
Upper power channel - 38.0040 (pair)
Lower data channel - 84.0040 (pair)

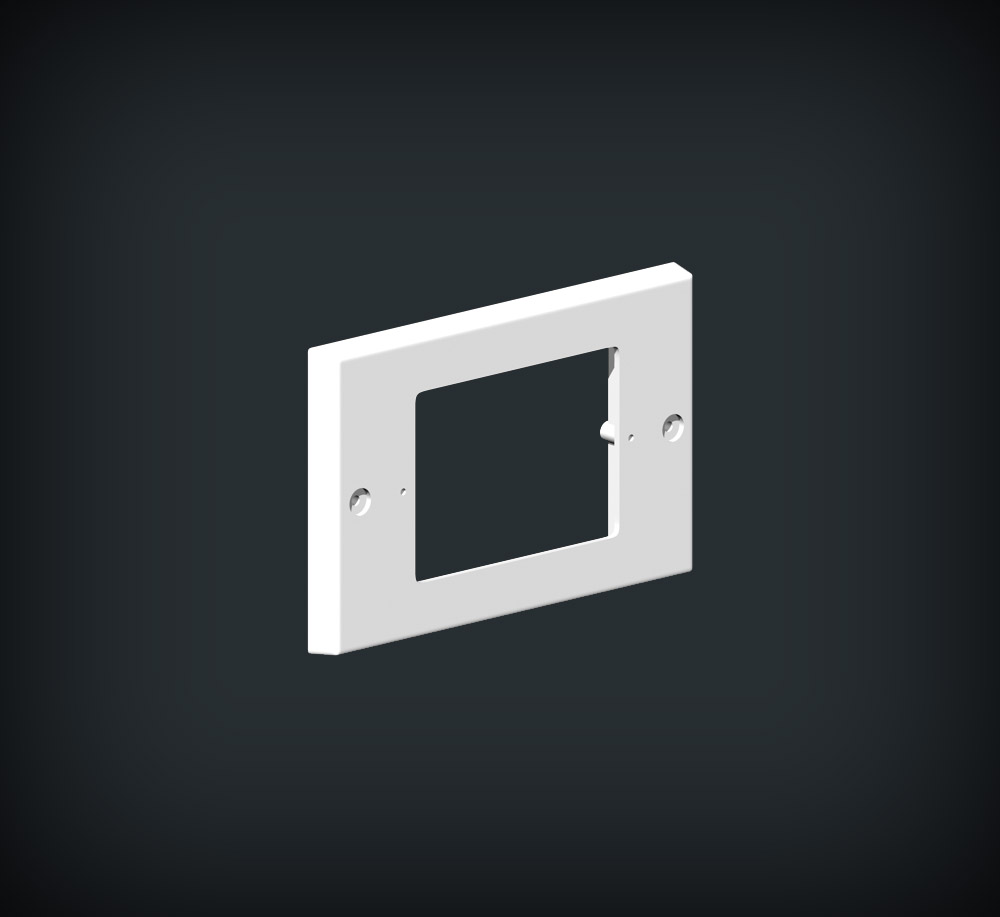

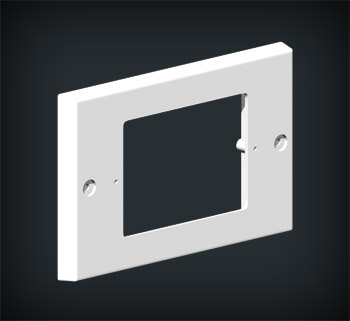

Conversion plate for standard outlets
Supply by others.
Joining pieces - rivet or screw fix supplied in pairs - 10.0000
