CAT 6A 121/2

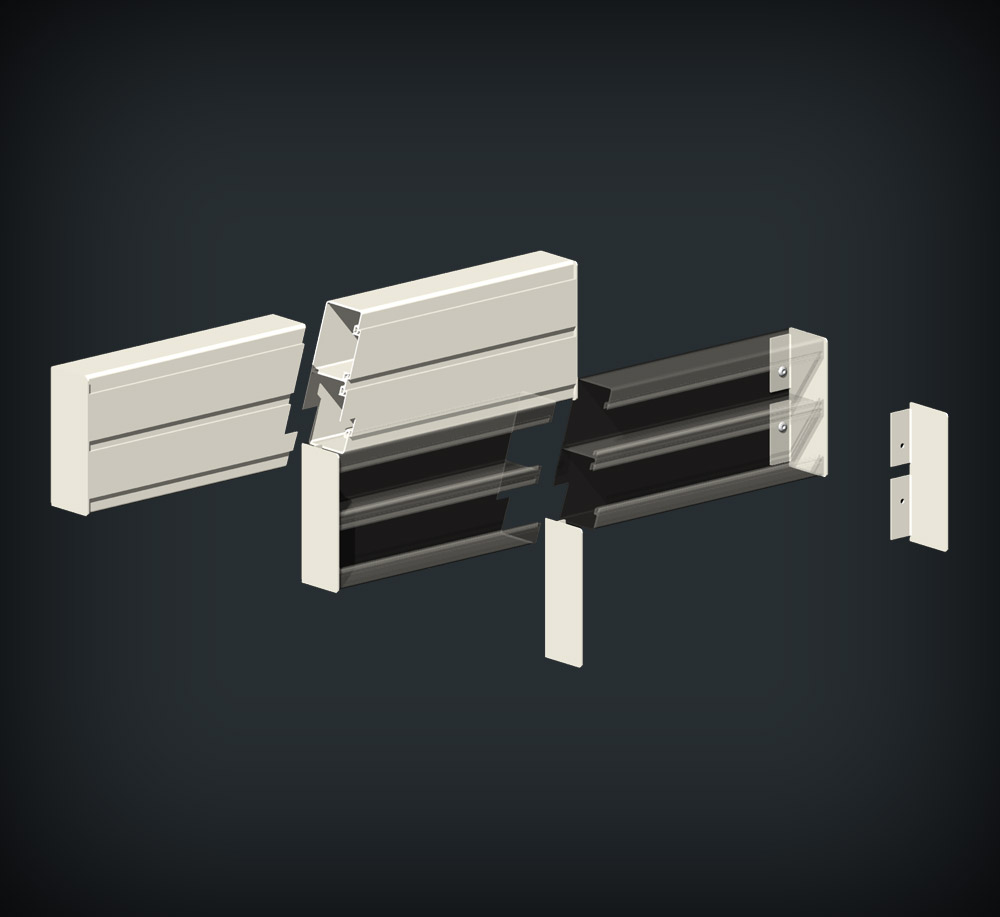

Cat 6A Dual Channel

Profile lengths include covers.
3.1m - 121.2136
6.2m - 121.2166

Column Surrounds:
Site dimensions required,
Corner cover pieces included
Two Sides - 121.2926
Three Sides - 121.2936
Four Sides - 121.2946
Fabricated in two parts with provision for dropper feeds if required

Download Datasheet

Accessories

Commonly requested factory fabricated components shown.  Custom fabricated units a specialty.

Internal Corner - 121.2306
External Corner - 121.2316. Covers included - 38.0380

Flat Bend Data - 121.2406
When ordering Flat Bends be aware the upper channel is smaller inside.

Flat T intersection data right - 121.2516
Flat T intersection data left - 121.2506

45-degree End Cap - 121.2606

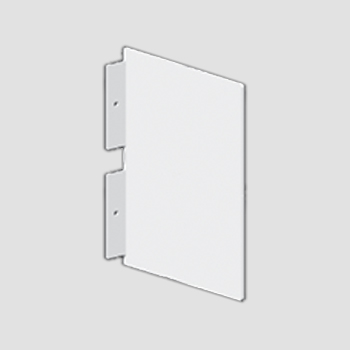

90-degree End Cap -121.2626
Rivet / Screw fix to profiles

Power & Data Fixing Plates - Pair - 38.0040

Joining Plates - Pair - 91.1106. Rivet / Screw fix to profile.
