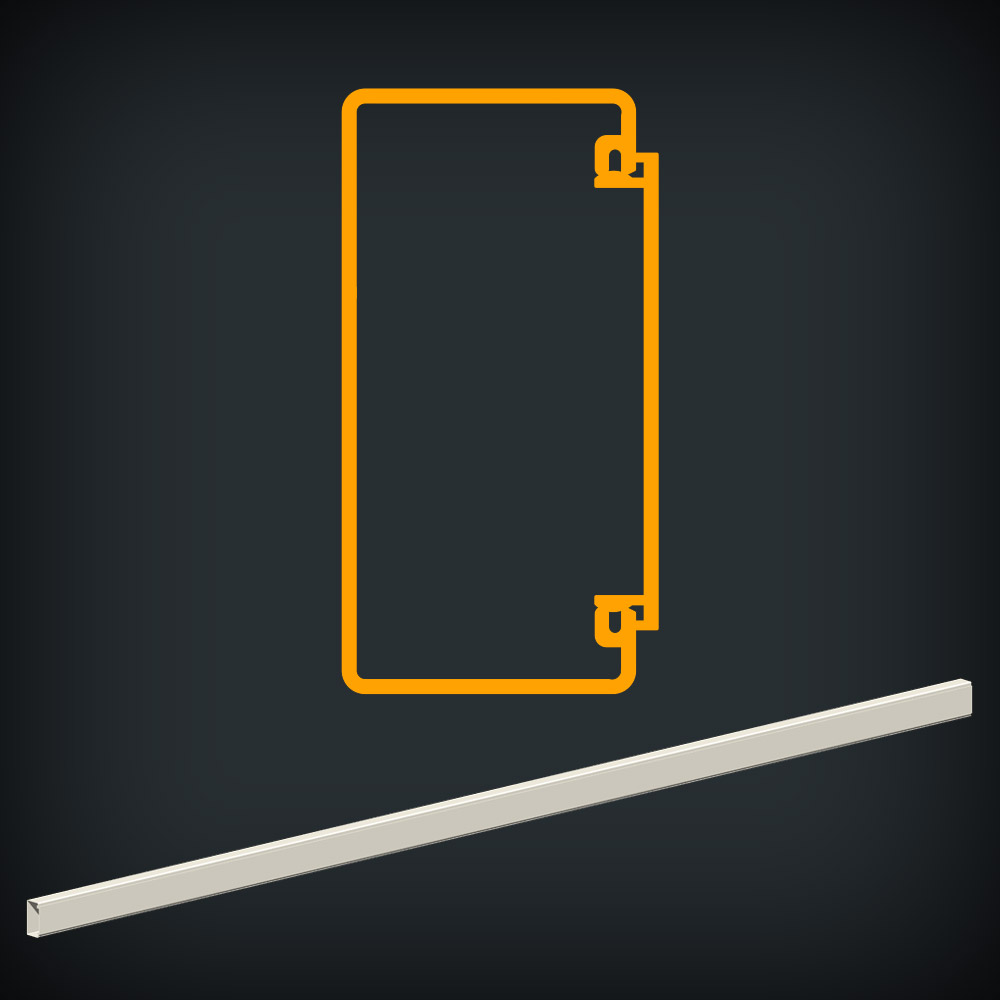

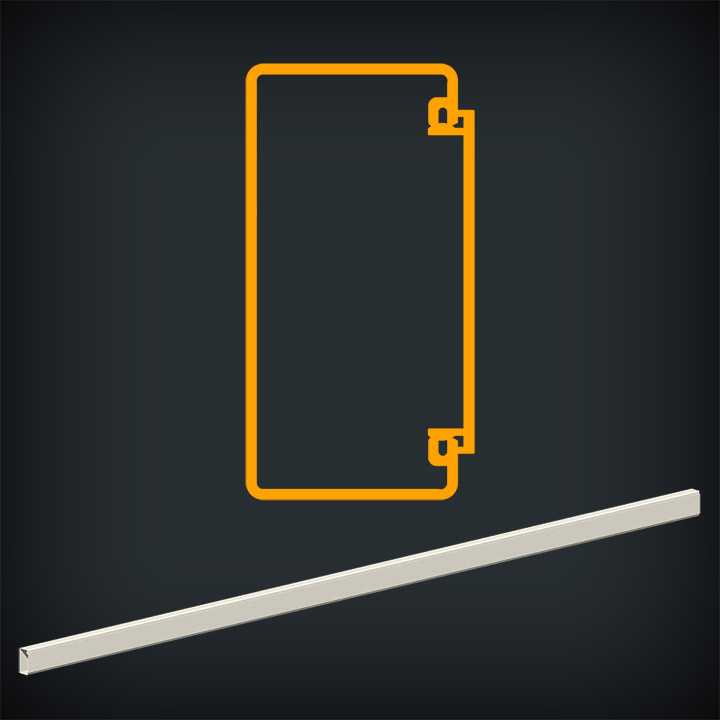

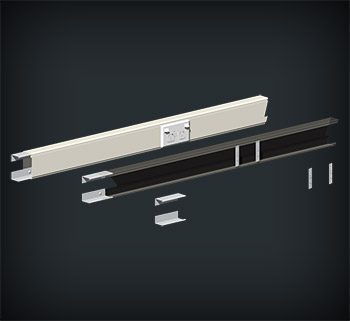

Cat 5 90/1
89 x 43mm
Profile lengths includes covers
3.1m - 90.1130
6.2m - 90.1160
Column Surrounds: Site dimensions required, corner cover pieces included
Two Sides - 90.1920
Three Sides - 90.1930
Four Sides - 90.1940, fabricated in two parts; includes joiners and provision for dropper feeds.

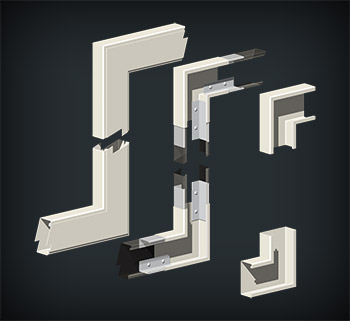

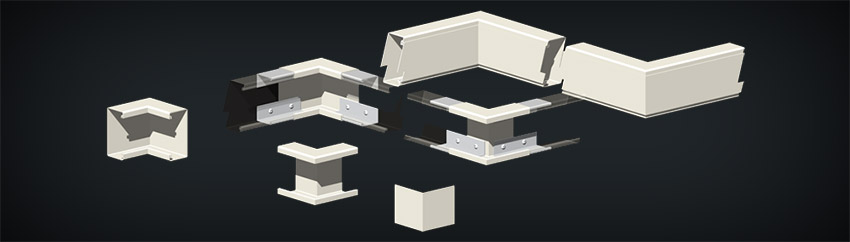

Internal Corners 90.1300
External Corners w cnr cvr 90.1310
Replacement corner cover 70.0380
Flat Bend w corner cover 90.1400

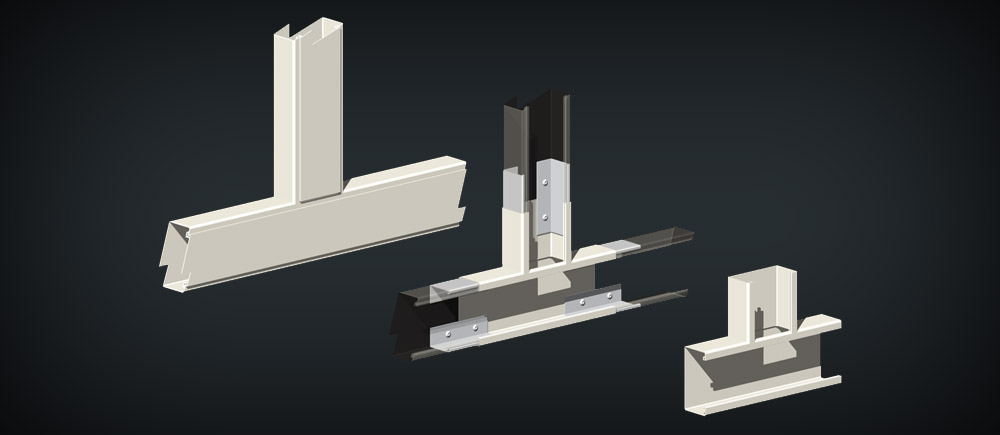

Tee junction 90.1500

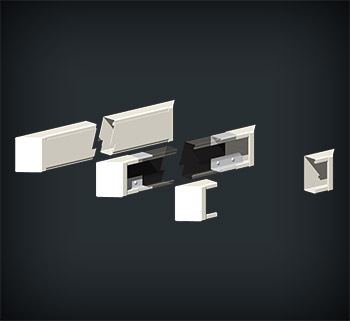

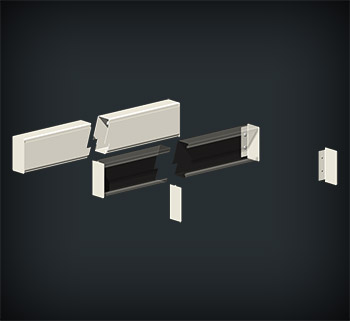

Joiner pieces - supplied as a pair - 90.0100

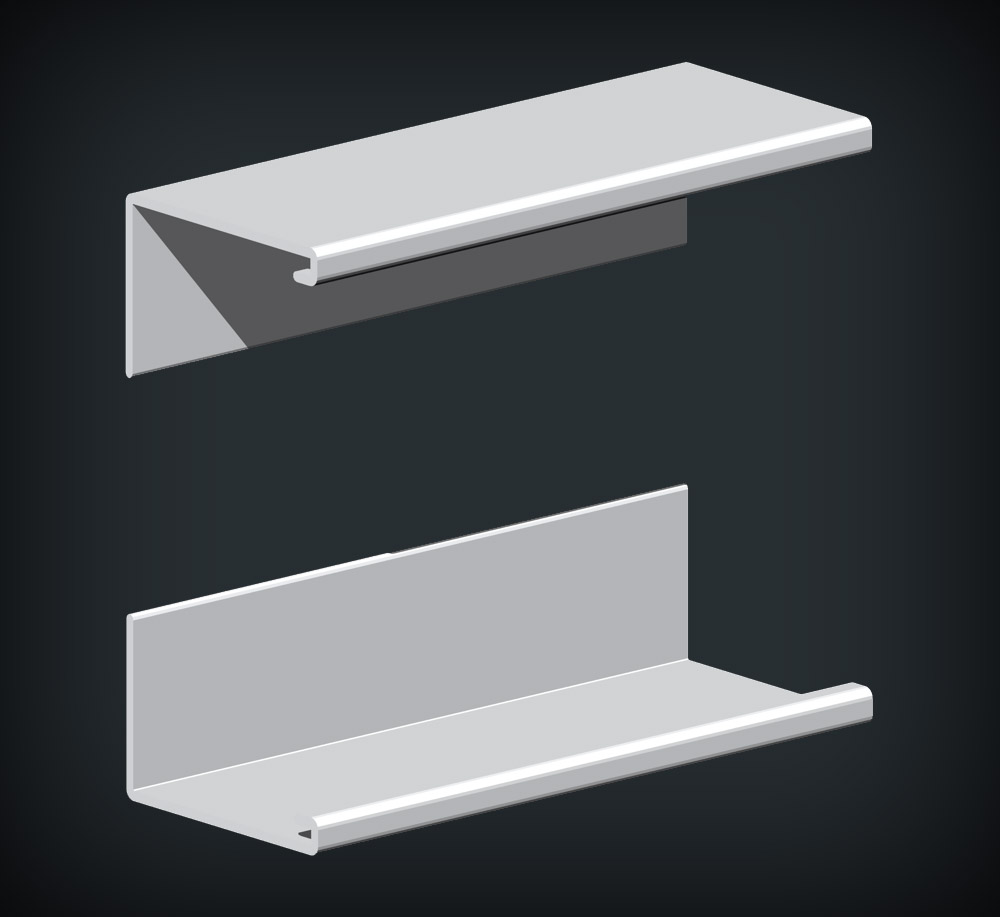

45 degree end caps - for use where terminating near doorways
Left end - 90.1600
Right end - 90.1610
Two joiner pairs recommended.
90 degree end caps, left or right handed - 90.0620
Rivet or screw fix

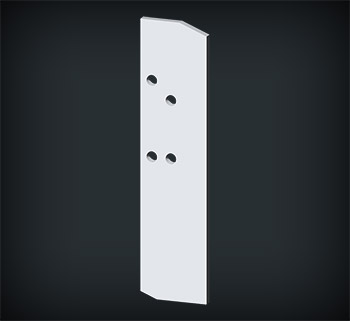

Outlet fixing plates - supplied in pairs - 70.0040
One pair per outlet.
